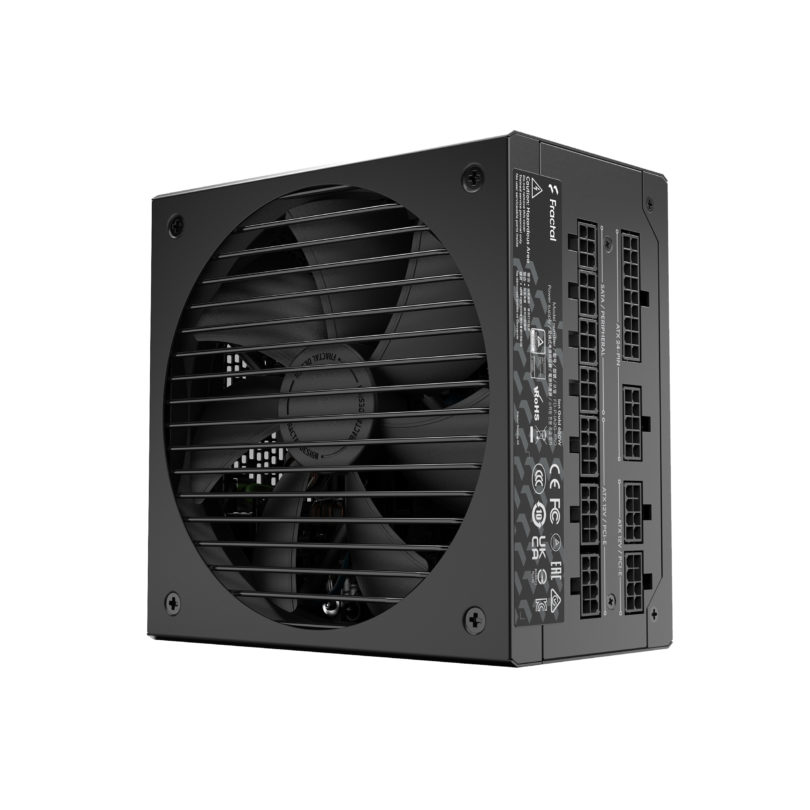

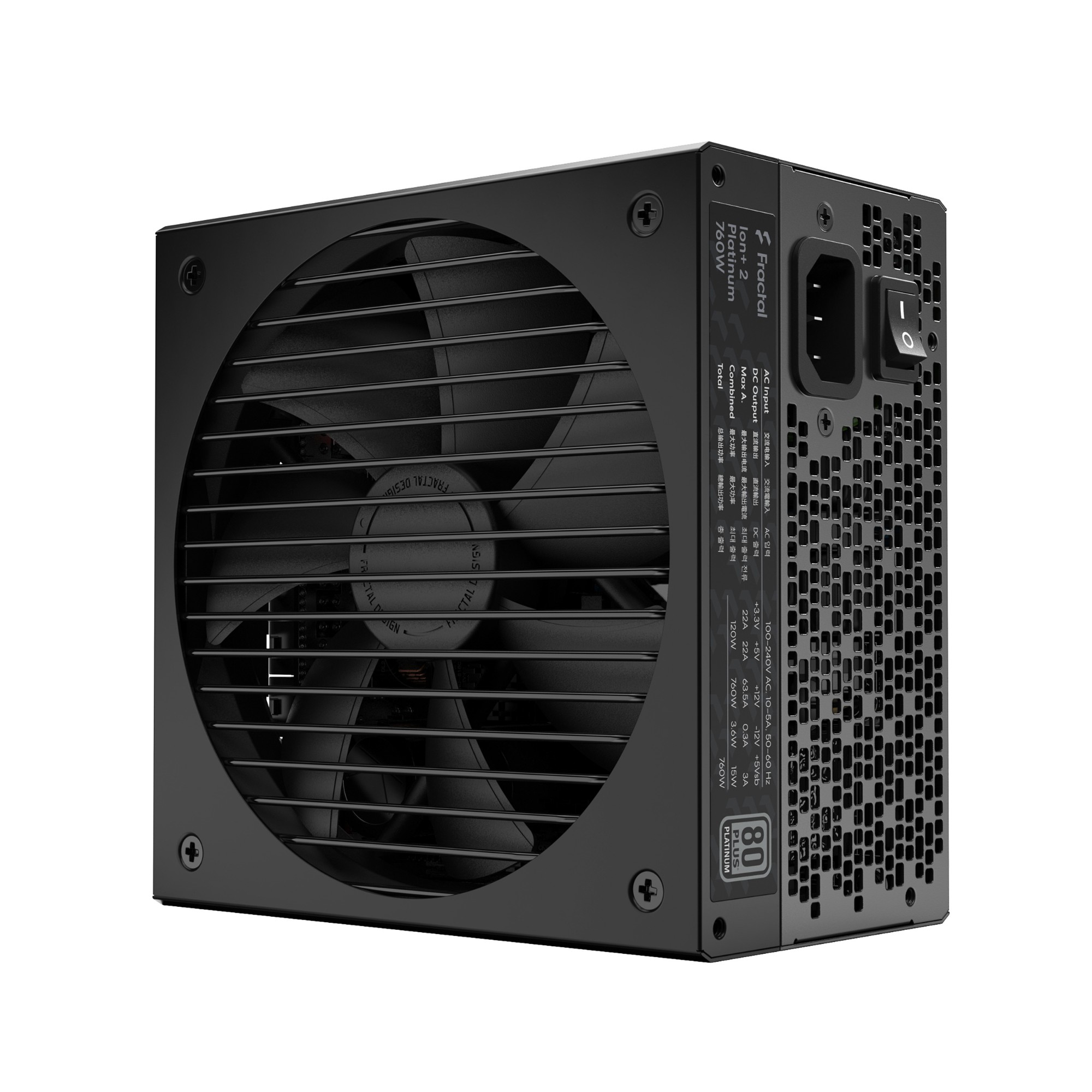

Name: Fractal Design Ion+ 2 Platinum 760W power supply unit 20+4 pin ATX ATX Black
Brand: Fractal Design
SKU: FD-P-IA2P-760
Price: 212.15 GBP
Availability: OutOfStock

Fractal Design Ion Gold 650W power supply unit 24-pin ATX Black

£96.18

RRP £125.83

Save £45.68

Out of stock

Add to Wish List Add to Compare

More Info

Add to Wish List Add to Compare

Fractal Design Ion+ 2 Platinum 860W power supply unit 20+4 pin ATX ATX Black

£225.08

RRP £296.36

Save £108.79

Out of stock

Add to Wish List Add to Compare

More Info

Add to Wish List Add to Compare

Fractal Design Ion+ 2 Platinum 760W power supply unit 20+4 pin ATX ATX Black

£212.15

RRP £304.08

Save £127.29

Out of stock

Add to Wish List Add to Compare

More Info

Add to Wish List Add to Compare

Cooling
Fan diameter	14 cm
Performance
On/off switch	Yes
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	2.52
EPS version	2.92
Mean time between failures (MTBF)	100000 h
Certification	CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Bearing technology	FDB
Harmonized System (HS) code	84733020
Design
80 PLUS certification	80 PLUS Gold
Certification	CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Product colour	Black
Fan diameter	14 cm
On/off switch	Yes
Power
Total power	650 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Combined power (+3.3V)	110 W
Combined power (+5V)	110 W
Max output current (+3.3V)	20 A
Max output current (+12V)	54.1 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length	50 cm
Peripheral (Molex) power cable length	150,500 mm
CPU power cable length	60 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	2.13 kg
Packaging data
Package depth	300 mm
Package width	110 mm
Package height	210 mm
Package type	Box
Package weight	2.53 kg
Technical details
Compliance certificates	RoHS
Certificates
80 PLUS certification	80 PLUS Gold
Certification	CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Logistics data
Harmonized System (HS) code	84733020
Other features
Harmonized System (HS) code	84733020

Cooling
Fan diameter	14 cm
Performance
On/off switch	Yes
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	2.52
EPS version	2.92
Mean time between failures (MTBF)	100000 h
Certification	CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Bearing technology	FDB
Harmonized System (HS) code	84733020
Design
80 PLUS certification	80 PLUS Gold
Certification	CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Product colour	Black
Fan diameter	14 cm
On/off switch	Yes
Power
Total power	650 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Combined power (+3.3V)	110 W
Combined power (+5V)	110 W
Max output current (+3.3V)	20 A
Max output current (+12V)	54.1 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length	50 cm
Peripheral (Molex) power cable length	150,500 mm
CPU power cable length	60 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	2.13 kg
Packaging data
Package depth	300 mm
Package width	110 mm
Package height	210 mm
Package type	Box
Package weight	2.53 kg
Technical details
Compliance certificates	RoHS
Certificates
80 PLUS certification	80 PLUS Gold
Certification	CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Logistics data
Harmonized System (HS) code	84733020
Other features
Harmonized System (HS) code	84733020

Cooling
Fan diameter	14 cm
Cooling type	Active
Design
80 PLUS certification	80 PLUS Platinum
Certification	CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
Product colour	Black
Fan diameter	14 cm
Cooling type	Active
Power
Total power	860 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	5 - 10 A
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
Max output current (+3.3V)	22 A
Max output current (+12V)	71.6 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	150,400,650 mm
Peripheral (Molex) power cable length	150,400 mm
CPU power cable length	70 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	10
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	6
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	2.52
EPS version	2.92
Mean time between failures (MTBF)	100000 h
Certification	CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
Bearing technology	FDB
Supported motherboard form factors	ATX
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Certificates
Certification	CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
80 PLUS certification	80 PLUS Platinum
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	2.53 kg
Packaging data
Package depth	325 mm
Package width	210 mm
Package height	110 mm
Package weight	3.06 kg
Logistics data
Harmonized System (HS) code	84733020
Other features
Harmonized System (HS) code	84733020

Cooling
Fan diameter	14 cm
Cooling type	Active
Design
80 PLUS certification	80 PLUS Platinum
Certification	CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
Product colour	Black
Fan diameter	14 cm
Cooling type	Active
Power
Total power	860 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	5 - 10 A
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
Max output current (+3.3V)	22 A
Max output current (+12V)	71.6 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	150,400,650 mm
Peripheral (Molex) power cable length	150,400 mm
CPU power cable length	70 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	10
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	6
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	2.52
EPS version	2.92
Mean time between failures (MTBF)	100000 h
Certification	CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
Bearing technology	FDB
Supported motherboard form factors	ATX
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Certificates
Certification	CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
80 PLUS certification	80 PLUS Platinum
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	2.53 kg
Packaging data
Package depth	325 mm
Package width	210 mm
Package height	110 mm
Package weight	3.06 kg
Logistics data
Harmonized System (HS) code	84733020
Other features
Harmonized System (HS) code	84733020

Cooling
Fan diameter	14 cm
Cooling type	Active
Design
80 PLUS certification	80 PLUS Platinum
Certification	CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
Product colour	Black
Fan diameter	14 cm
Cooling type	Active
Power
Total power	760 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	5 - 10 A
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
Max output current (+3.3V)	22 A
Max output current (+12V)	63.3 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	150,400,650 mm
Peripheral (Molex) power cable length	150,400 mm
CPU power cable length	70 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	10
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	2.52
EPS version	2.92
Mean time between failures (MTBF)	100000 h
Certification	CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
Bearing technology	FDB
Supported motherboard form factors	ATX
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Certificates
Certification	CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
80 PLUS certification	80 PLUS Platinum
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	2.53 kg
Packaging data
Package depth	325 mm
Package width	210 mm
Package height	110 mm
Package weight	3.06 kg
Logistics data
Harmonized System (HS) code	84733020
Other features
Harmonized System (HS) code	84733020
