| Ports & interfaces |
|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber optic connector | SFP |
| Network |
|---|
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| 10G support | No |
| Virtual LAN features |
|---|
| VLAN support | Yes |
| Optical fiber |
|---|
| Fiber optic connector | SFP |
| Transmission distance (max) | 80 km |
| Fiber ethernet cabling technology | 1000BASE-X |
| Technical details |
|---|
| Product colour | Black |
| Mean time between failures (MTBF) | 374052 h |
| Management features |
|---|
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Security |
|---|
| BPDU filtering/protection | Yes |
| Static port security | Yes |
| Security algorithms | SNMP, SSH |
| IGMP snooping | Yes |
| DHCP features | DHCP server, DHCP snooping |
| Certificates |
|---|
| Safety | UL/CSA 60950-1, EN 60950-1, IEC 60950-1, NOM - NOM-019-SCF1, UL/CSA/IEC/EN 61010-2-201, CE |
| Electromagnetic compatibility | FCC 47 CFR 15 A, EN 55022/CISPR 22 A, EN 55016-1-1, -1-4, -2-3 AVCCI A, RoHS, AS/NZS CISPR 22 A, AS/NZS CISPR 24, CISPR11 Class A, CISPR22 A, ICES 003 A, KCC, CE, RCM, EAC, Anatel, NAL, IEC/EN/EN61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-9, IEC/EN 61000-4-29 |
| Memory |
|---|
| Memory type | DDR2-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 160 MB |
| Design |
|---|
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Safety | UL/CSA 60950-1, EN 60950-1, IEC 60950-1, NOM - NOM-019-SCF1, UL/CSA/IEC/EN 61010-2-201, CE |
| Product colour | Black |
| Electromagnetic compatibility | FCC 47 CFR 15 A, EN 55022/CISPR 22 A, EN 55016-1-1, -1-4, -2-3 AVCCI A, RoHS, AS/NZS CISPR 22 A, AS/NZS CISPR 24, CISPR11 Class A, CISPR22 A, ICES 003 A, KCC, CE, RCM, EAC, Anatel, NAL, IEC/EN/EN61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-9, IEC/EN 61000-4-29 |
| Performance |
|---|
| Memory type | DDR2-SDRAM |
| Mean time between failures (MTBF) | 374052 h |
| Internal memory | 128 MB |
| Flash memory | 160 MB |
| Harmonized System (HS) code | 85176990 |
| Power |
|---|
| Power consumption (max) | 205.2 W |
| Power consumption (typical) | 10.6 W |
| Input voltage | 48 - 54 V |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port | 25.5 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions |
|---|
| Width | 45.7 mm |
| Depth | 134 mm |
| Height | 127 mm |
| Weight | 770 g |
| Logistics data |
|---|
| Harmonized System (HS) code | 85176990 |
| Other features |
|---|
| Input voltage | 48 - 54 V |
PLANET IGS-620TF network switch Unmanaged Gigabit Ethernet (10/100/1000) Blue£159.41RRP £217.86
LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, 1 x SC Multi-Mode Fiber, -20°C to 70°C£194.70RRP £277.45
LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, -40°C to 75°C£312.07RRP £426.50

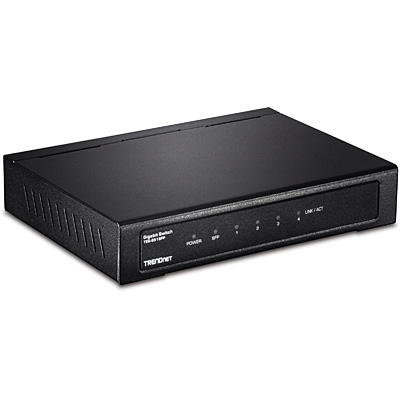

Trendnet TEG-S51SFP network switch Unmanaged Gigabit Ethernet (10/100/1000) Black£56.92RRP £75.41
