| Management features |
|---|
| Reset button | Yes |
| Multicast support | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Ports & interfaces |
|---|
| Terminal block port | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Fiber optic connector | MiniGBIC |
| Console port | RJ-45 |
| Network |
|---|
| IGMP snooping | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4095 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN |
| Virtual LAN features |
|---|
| VLAN support | Yes |
| Number of VLANs | 4095 |
| Virtual LAN features | Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN |
| Data transmission |
|---|
| Number of multicast groups filtered | 255 |
| Number of VLANs | 4095 |
| Jumbo frames | 9216 |
| Throughput | 29.7 Mpps |
| Number of IP interfaces | 8 |
| MAC address table | 8000 entries |
| Switching capacity | 40 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Optical fiber |
|---|
| Fiber optic connector | MiniGBIC |
| Fiber ethernet cabling technology | 100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX |
| Performance |
|---|
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details |
|---|
| Product colour | Blue, White |
| Housing material | Aluminium |
| Rack mounting | No |
| Security |
|---|
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features |
|---|
| Number of multicast groups filtered | 255 |
| Multicast support | Yes |
| Protocols |
|---|
| Management protocols | Telnet, SNMP |
| Supported network protocols | IPv4 / IPv6 |
| Certificates |
|---|
| Certification | FCC, CE |
| Design |
|---|
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| Reset button | Yes |
| DIN rail mounting | Yes |
| Product colour | Blue, White |
| LED indicators | Yes |
| Housing material | Aluminium |
| Certification | FCC, CE |
| Rack mounting | No |
| Indication |
|---|
| LED indicators | Yes |
| Power |
|---|
| Power consumption (max) | 17 W |
| Power consumption (typical) | 8 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) | No |
| Operational conditions |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 27 BTU/h |
| Weight & dimensions |
|---|
| Width | 76.8 mm |
| Depth | 107.3 mm |
| Height | 152 mm |
| Weight | 1.04 kg |
| Logistics data |
|---|
| Harmonized System (HS) code | 85176990 |
| Other features |
|---|
| Terminal block port | Yes |
PLANET IGS-20040MT network switch Managed L2+ Gigabit Ethernet (10/100/1000) Blue, White£514.24RRP £642.79
LevelOne 16-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 500W£724.51RRP £1,080.73

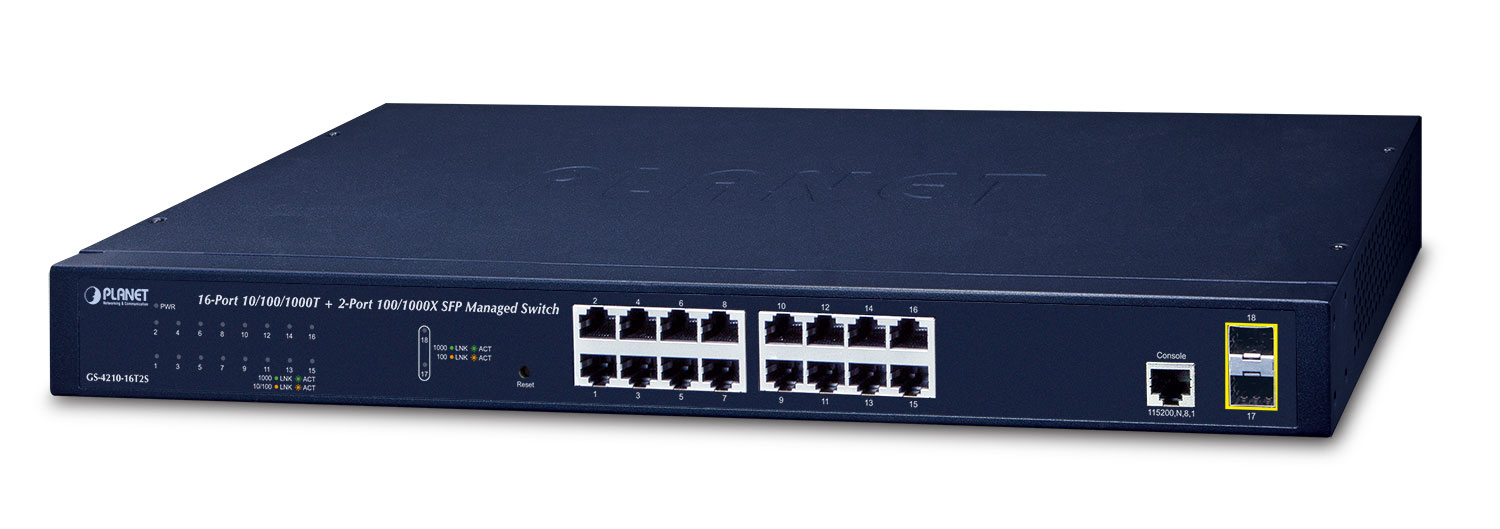

PLANET GS-4210-16T2S network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) 1U Blue£145.15RRP £194.75
