| Management features |
|---|
| Reset button | Yes |
| Multicast support | Yes |
| Traffic shaping | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | RFC 1213 MIB-II, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2863 Interface MIB, RFC 2665 Ether-Like MIB, RFC 2819 RMON MIB (Group 1, 2, 3 and 9), RFC 2737 Entity MIB, RFC 2618 RADIUS Client MIB, RFC 2863 IF-MIB, RFC 2933 IGMP-STD-MIB, RFC 3411 SNMP-Frameworks-MIB, RFC 4292 IP Forward MIB, RFC 4293 IP MIB, RFC 4836 MAU-MIB, IEEE 802.1X PAE, LLDP |
| Switch layer | L2+ |
| Ports & interfaces |
|---|
| Terminal block port | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX |
| SFP module slots quantity | 16 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Compatible memory cards | Not supported |
| Console port | RS-232 |
| Network |
|---|
| IGMP snooping | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Port-based VLAN |
| Virtual LAN features |
|---|
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Port-based VLAN |
| Data transmission |
|---|
| Number of multicast groups filtered | 255 |
| Jumbo frames | 10000 |
| Throughput | 35.6 Mpps |
| MAC address table | 16000 entries |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Number of trunks | 24 |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Performance |
|---|
| Stackable | Yes |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details |
|---|
| Form factor | 1U |
| Product colour | Blue |
| Stackable | Yes |
| Rack mounting | Yes |
| Optical fiber |
|---|
| Transmission distance (max) | 120 km |
| Fiber type | Multi-mode |
| Fiber ethernet cabling technology | 1000BASE-X |
| Security |
|---|
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Auto-edge port | Yes |
| Admin-edge port | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SNMP, SSH, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features |
|---|
| Number of multicast groups filtered | 255 |
| Multicast support | Yes |
| Design |
|---|
| Reset button | Yes |
| On/off switch | Yes |
| Form factor | 1U |
| Product colour | Blue |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Indication |
|---|
| LED indicators | Yes |
| Power |
|---|
| Power consumption (max) | 38 W |
| Power supply included | No |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions |
|---|
| Width | 440 mm |
| Depth | 200 mm |
| Height | 44.5 mm |
| Weight | 3 kg |
| Packaging data |
|---|
| Terminal block included | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Rubber feet | Yes |
| Quick start guide | Yes |
| Cables included | RS-232 |
| Logistics data |
|---|
| Harmonized System (HS) code | 85176990 |
| Other features |
|---|
| Terminal block port | Yes |
| Packaging content |
|---|
| Terminal block included | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Rubber feet | Yes |
| Quick start guide | Yes |
| Cables included | RS-232 |
Trendnet TI-PG1284i Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black£871.78RRP £1,176.89

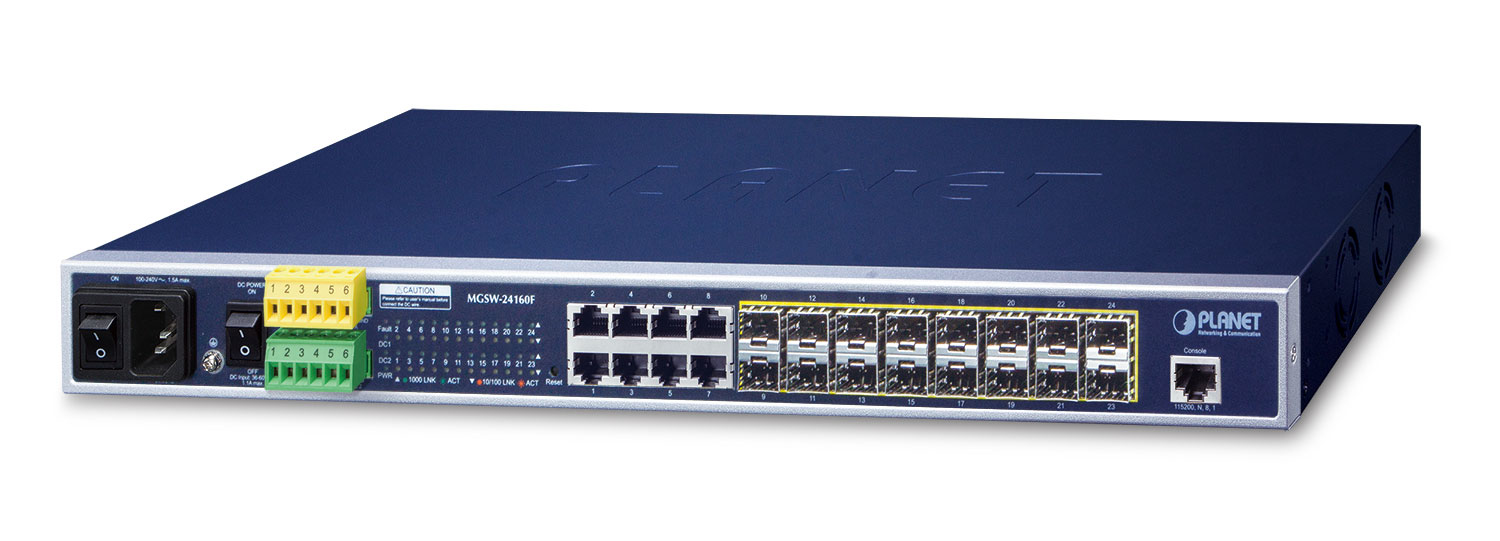

PLANET MGSW-24160F network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Blue£656.06RRP £918.49
