Name: EVGA SuperNOVA 650 G6 power supply unit 650 W 24-pin ATX Black
Brand: EVGA
SKU: 220-G6-0650-X3
Price: 112.37 GBP
Availability: InStock

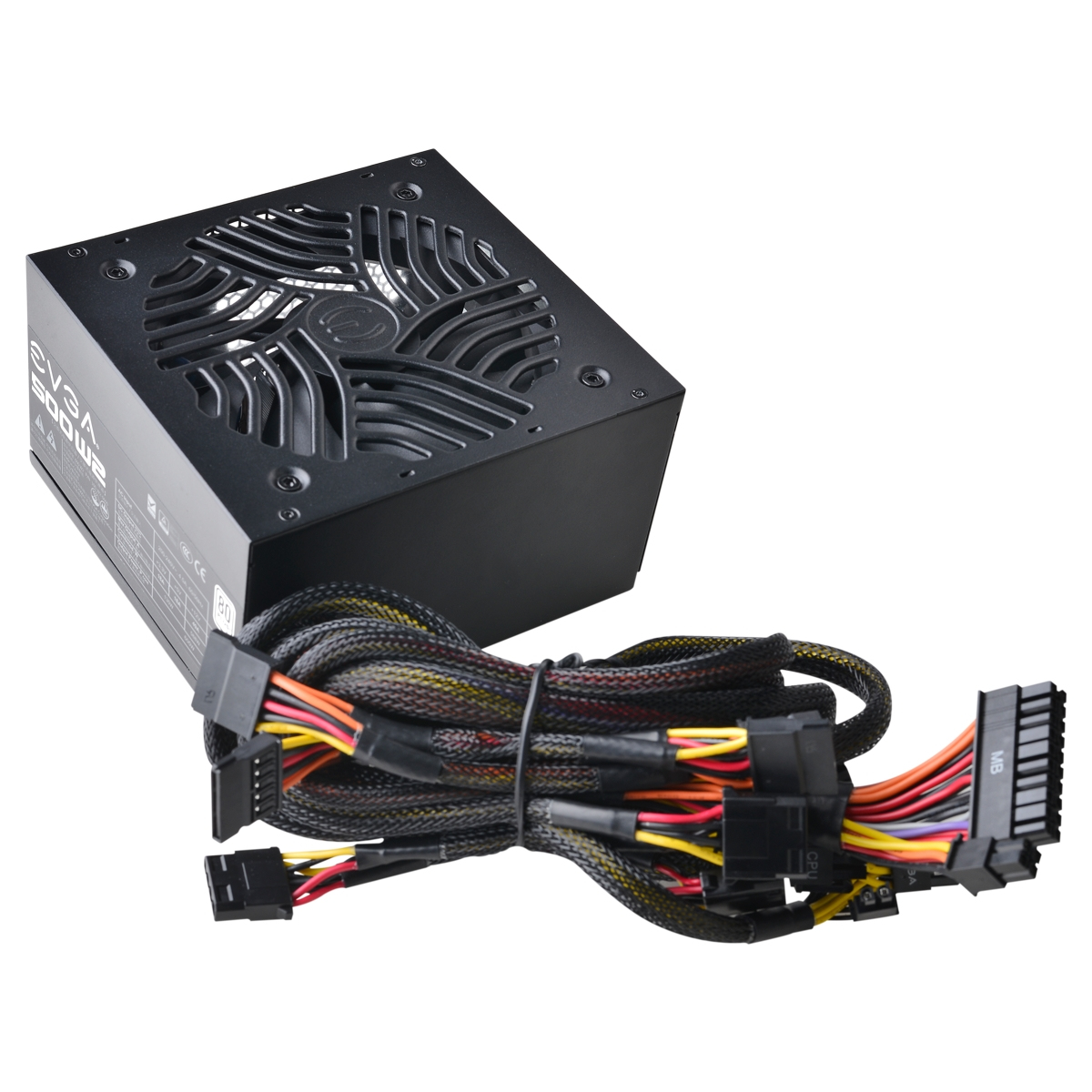

EVGA 500 W2 power supply unit 500 W 20+4 pin ATX Black

£45.38

RRP £57.49

Save £19.67

In stock

More Info

Add to Wish List Add to Compare

EVGA 220-GP-1300-X3 power supply unit 1300 W Black

£211.26

RRP £288.72

Save £112.67

In stock

More Info

Add to Wish List Add to Compare

EVGA SuperNOVA 650 G6 power supply unit 650 W 24-pin ATX Black

£112.37

RRP £132.96

Save £39.33

In stock

More Info

Add to Wish List Add to Compare

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
Performance
On/off switch	Yes
80 PLUS certification	80 PLUS White
Purpose	PC
Mean time between failures (MTBF)	100000 h
Certification	TUV, CB, CE, RCM, CCC
Bearing technology	Sleeve
Design
80 PLUS certification	80 PLUS White
Certification	TUV, CB, CE, RCM, CCC
Product colour	Black
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan location	Top
Power
Total power	500 W
AC input voltage	200 - 240 V
AC input frequency	50 - 60 Hz
Input current	3.5 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	480 W
Combined power (+5V)	130 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	18 A
Max output current (+12V)	40 A
Max output current (+5V)	18 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Over voltage, Short circuit, Under voltage
Efficiency	85%
Ports & interfaces
Motherboard power cable length	55 cm
SATA power cable length	450,570,690 mm
Peripheral (Molex) power cable length	450,570,690,810 mm
PCI Express power cable length	67 cm
CPU power cable length	60 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	2
Floppy disk drive connector	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	85 mm
Weight	1.81 kg
Packaging data
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Package type	Box
Technical details
Compliance certificates	RoHS
Certificates
80 PLUS certification	80 PLUS White
Certification	TUV, CB, CE, RCM, CCC

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
Performance
On/off switch	Yes
80 PLUS certification	80 PLUS White
Purpose	PC
Mean time between failures (MTBF)	100000 h
Certification	TUV, CB, CE, RCM, CCC
Bearing technology	Sleeve
Design
80 PLUS certification	80 PLUS White
Certification	TUV, CB, CE, RCM, CCC
Product colour	Black
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan location	Top
Power
Total power	500 W
AC input voltage	200 - 240 V
AC input frequency	50 - 60 Hz
Input current	3.5 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	480 W
Combined power (+5V)	130 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	18 A
Max output current (+12V)	40 A
Max output current (+5V)	18 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Over voltage, Short circuit, Under voltage
Efficiency	85%
Ports & interfaces
Motherboard power cable length	55 cm
SATA power cable length	450,570,690 mm
Peripheral (Molex) power cable length	450,570,690,810 mm
PCI Express power cable length	67 cm
CPU power cable length	60 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	2
Floppy disk drive connector	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	85 mm
Weight	1.81 kg
Packaging data
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Package type	Box
Technical details
Compliance certificates	RoHS
Certificates
80 PLUS certification	80 PLUS White
Certification	TUV, CB, CE, RCM, CCC

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Fan location	Top
Performance
On/off switch	Yes
80 PLUS certification	80 PLUS Gold
Purpose	PC
Mean time between failures (MTBF)	100000 h
Bearing technology	FDB
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan location	Top
Power
Total power	1300 W
AC input voltage	200 - 240 V
Input current	10 - 8 A
Combined power (+3.3V)	120 W
Combined power (+12V)	1299.6 W
Combined power (+5V)	120 W
Combined power (-12V)	6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	24 A
Max output current (+12V)	108.3 A
Max output current (+5V)	24 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency	92%
Ports & interfaces
Cabling type	Fully-Modular
Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Package type	Box
Certificates
80 PLUS certification	80 PLUS Gold

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Fan location	Top
Performance
On/off switch	Yes
80 PLUS certification	80 PLUS Gold
Purpose	PC
Mean time between failures (MTBF)	100000 h
Bearing technology	FDB
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan location	Top
Power
Total power	1300 W
AC input voltage	200 - 240 V
Input current	10 - 8 A
Combined power (+3.3V)	120 W
Combined power (+12V)	1299.6 W
Combined power (+5V)	120 W
Combined power (-12V)	6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	24 A
Max output current (+12V)	108.3 A
Max output current (+5V)	24 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency	92%
Ports & interfaces
Cabling type	Fully-Modular
Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Package type	Box
Certificates
80 PLUS certification	80 PLUS Gold

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Performance
On/off switch	Yes
80 PLUS certification	80 PLUS Gold
Purpose	PC
Mean time between failures (MTBF)	100000 h
Certification	TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Bearing technology	FDB
Design
80 PLUS certification	80 PLUS Gold
Certification	TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Product colour	Black
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Power
Total power	650 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	4.5 - 9 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	650 W
Combined power (+5V)	120 W
Combined power (-12V)	6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	24 A
Max output current (+12V)	54.1 A
Max output current (+5V)	24 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency	92%
Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	550,650,750 mm
Peripheral (Molex) power cable length	550,650,750,850 mm
PCI Express power cable length	82 cm
Floppy disk drive cable length	10 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	3
Floppy drive power connector	1
ATX Power connector (24-pin)	Yes
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Weight	2.72 kg
Packaging data
Package type	Box
Certificates
80 PLUS certification	80 PLUS Gold
Certification	TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
