Motherboards
-
| Technical details |
|---|
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Motherboard form factor | Mini-ITX |
| Component for | Server |
| Performance |
|---|
| Motherboard form factor | Mini-ITX |
| Component for | Server |
| Processor |
|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Xeon® |
| Intel Xeon series | D-1500 |
| Processor number of cores supported | 8 |
| Memory |
|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 1866,2133 MHz |
| Supported RDIMM clock speeds | 1600,1866,2133,2400 MHz |
| Supported UDIMM clock speeds | 1600,1866,2133 MHz |
| Supported RDIMM module capacity | 4GB, 8GB, 16GB, 32GB |
| Supported UDIMM module capacity | 4GB, 8GB, 16GB |
| Maximum internal memory | 128 GB |
| Maximum RDIMM memory | 128 GB |
| Maximum UDIMM memory | 64 GB |
| Storage controllers |
|---|
| Supported storage drive interfaces | SATA III |
| Graphics |
|---|
| Discrete graphics support | Yes |
| On-board graphics card model | Aspeed AST2400 |
| On-board graphics card memory | 16 MB |
| Internal I/O |
|---|
| Supported storage drive interfaces | SATA III |
| TPM connector | Yes |
| Number of SATA III connectors | 6 |
| Number of COM connectors | 1 |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| IPMI LAN (RJ-45) port | Yes |
| Network |
|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel I210, Realtek RTL8211E |
| Ethernet interface type | Gigabit Ethernet |
| Features |
|---|
| Motherboard form factor | Mini-ITX |
| Component for | Server |
| Expansion slots |
|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS |
|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 2.0 |
| Operational conditions |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Video |
|---|
| Discrete graphics support | Yes |
| Weight & dimensions |
|---|
| Width | 170.2 mm |
| Depth | 170.2 mm |
| Other features |
|---|
| Supported RDIMM clock speeds | 1600,1866,2133,2400 MHz |
| Supported UDIMM clock speeds | 1600,1866,2133 MHz |
| Supported RDIMM module capacity | 4GB, 8GB, 16GB, 32GB |
| Supported UDIMM module capacity | 4GB, 8GB, 16GB |
| Maximum UDIMM memory | 64 GB |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Intel Xeon series | D-1500 |

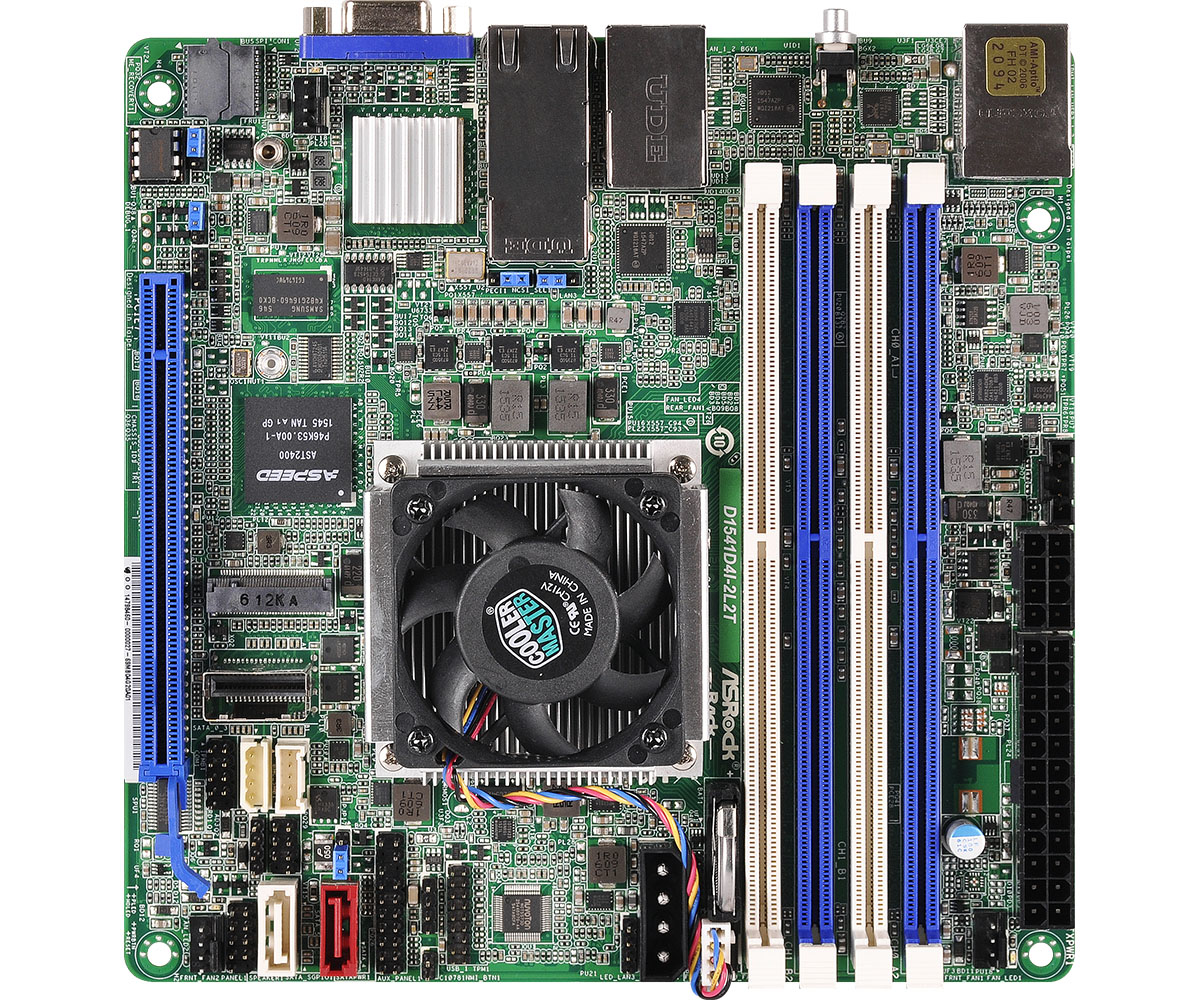

Asrock D1541D4I-2L2T motherboard Mini-ITX | Technical details |
|---|
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Motherboard form factor | Mini-ITX |
| Component for | Server |
| Performance |
|---|
| Motherboard form factor | Mini-ITX |
| Component for | Server |
| Processor |
|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Xeon® |
| Intel Xeon series | D-1500 |
| Processor number of cores supported | 8 |
| Memory |
|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 1866,2133 MHz |
| Supported RDIMM clock speeds | 1600,1866,2133,2400 MHz |
| Supported UDIMM clock speeds | 1600,1866,2133 MHz |
| Supported RDIMM module capacity | 4GB, 8GB, 16GB, 32GB |
| Supported UDIMM module capacity | 4GB, 8GB, 16GB |
| Maximum internal memory | 128 GB |
| Maximum RDIMM memory | 128 GB |
| Maximum UDIMM memory | 64 GB |
| Storage controllers |
|---|
| Supported storage drive interfaces | SATA III |
| Graphics |
|---|
| Discrete graphics support | Yes |
| On-board graphics card model | Aspeed AST2400 |
| On-board graphics card memory | 16 MB |
| Internal I/O |
|---|
| Supported storage drive interfaces | SATA III |
| TPM connector | Yes |
| Number of SATA III connectors | 6 |
| Number of COM connectors | 1 |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| IPMI LAN (RJ-45) port | Yes |
| Network |
|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel I210, Realtek RTL8211E |
| Ethernet interface type | Gigabit Ethernet |
| Features |
|---|
| Motherboard form factor | Mini-ITX |
| Component for | Server |
| Expansion slots |
|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS |
|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 2.0 |
| Operational conditions |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Video |
|---|
| Discrete graphics support | Yes |
| Weight & dimensions |
|---|
| Width | 170.2 mm |
| Depth | 170.2 mm |
| Other features |
|---|
| Supported RDIMM clock speeds | 1600,1866,2133,2400 MHz |
| Supported UDIMM clock speeds | 1600,1866,2133 MHz |
| Supported RDIMM module capacity | 4GB, 8GB, 16GB, 32GB |
| Supported UDIMM module capacity | 4GB, 8GB, 16GB |
| Maximum UDIMM memory | 64 GB |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Intel Xeon series | D-1500 |
£983.99
£819.99RRP £1,238.18Save £418.19
In stock
-
| Technical details |
|---|
| Motherboard chipset | Intel Q170 Express |
| Trusted Platform Module (TPM) | Yes |
| Number of processors supported | 2 |
| Number of DIMM slots | 2 |
| Motherboard form factor | Mini-ITX |
| Compliance certificates | RoHS |
| Performance |
|---|
| Motherboard chipset | Intel Q170 Express |
| RAID levels | 0, 1, 5, 10 |
| Trusted Platform Module (TPM) | Yes |
| Motherboard form factor | Mini-ITX |
| Processor |
|---|
| Processor manufacturer | Intel |
| Processor thermal power (max) | 91 W |
| Processor socket | LGA 1151 (Socket H4) |
| Memory |
|---|
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 1866,2133,2400 MHz |
| Supported RDIMM clock speeds | 1866,2133,2400 MHz |
| Maximum internal memory | 32 GB |
| Storage controllers |
|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Graphics |
|---|
| On-board graphics card model | Intel® HD Graphics |
| Internal I/O |
|---|
| Supported storage drive interfaces | SATA III |
| Number of SATA III connectors | 5 |
| Number of chassis fan connectors | 4 |
| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 2.0 ports quantity | 5 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| Network |
|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I210-AT, Intel I219LM |
| Ethernet interface type | Gigabit Ethernet |
| Features |
|---|
| Motherboard chipset | Intel Q170 Express |
| Motherboard form factor | Mini-ITX |
| Expansion slots |
|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS |
|---|
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Processor special features |
|---|
| Trusted Platform Module (TPM) | Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions |
|---|
| Width | 170.2 mm |
| Depth | 170.2 mm |
| Other features |
|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| Supported RDIMM clock speeds | 1866,2133,2400 MHz |
| Number of processors supported | 2 |
| Number of DIMM slots | 2 |
| Supported DIMM module capacities | 4GB, 8GB, 16GB |
Supermicro X11SSV-LVDS Intel Q170 Express LGA 1151 (Socket H4) Mini-ITX | Technical details |
|---|
| Motherboard chipset | Intel Q170 Express |
| Trusted Platform Module (TPM) | Yes |
| Number of processors supported | 2 |
| Number of DIMM slots | 2 |
| Motherboard form factor | Mini-ITX |
| Compliance certificates | RoHS |
| Performance |
|---|
| Motherboard chipset | Intel Q170 Express |
| RAID levels | 0, 1, 5, 10 |
| Trusted Platform Module (TPM) | Yes |
| Motherboard form factor | Mini-ITX |
| Processor |
|---|
| Processor manufacturer | Intel |
| Processor thermal power (max) | 91 W |
| Processor socket | LGA 1151 (Socket H4) |
| Memory |
|---|
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 1866,2133,2400 MHz |
| Supported RDIMM clock speeds | 1866,2133,2400 MHz |
| Maximum internal memory | 32 GB |
| Storage controllers |
|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Graphics |
|---|
| On-board graphics card model | Intel® HD Graphics |
| Internal I/O |
|---|
| Supported storage drive interfaces | SATA III |
| Number of SATA III connectors | 5 |
| Number of chassis fan connectors | 4 |
| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 2.0 ports quantity | 5 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| Network |
|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I210-AT, Intel I219LM |
| Ethernet interface type | Gigabit Ethernet |
| Features |
|---|
| Motherboard chipset | Intel Q170 Express |
| Motherboard form factor | Mini-ITX |
| Expansion slots |
|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS |
|---|
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Processor special features |
|---|
| Trusted Platform Module (TPM) | Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions |
|---|
| Width | 170.2 mm |
| Depth | 170.2 mm |
| Other features |
|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| Supported RDIMM clock speeds | 1866,2133,2400 MHz |
| Number of processors supported | 2 |
| Number of DIMM slots | 2 |
| Supported DIMM module capacities | 4GB, 8GB, 16GB |
£392.16
£326.80 In stock
<
