Fiber Optic
-
| Technical details |
|---|
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | MPO/MTP |
| Cable type | CMP |
| Cable length | 3 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Master (outer) case GTIN (EAN/UPC) | 10037332200287 |
| Compliance certificates | RoHS |
| Features |
|---|
| Fibre optic type | OM4 |
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | MPO/MTP |
| Cable type | CMP |
| Cable length | 3 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Data transfer rate | 100 Gbit/s |
| Country of origin | China |
| Harmonized System (HS) code | 85447000 |
| Product colour | Magenta |
| Connector 2 gender | Female |
| Connector 1 gender | Female |
| Data transmission |
|---|
| Data transfer rate | 100 Gbit/s |
| Operational conditions |
|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions |
|---|
| Cable length | 3 m |
| Package width | 177.8 mm |
| Package depth | 12.7 mm |
| Package height | 228.6 mm |
| Package weight | 40 g |
| Packaging data |
|---|
| Package width | 177.8 mm |
| Package depth | 12.7 mm |
| Package height | 228.6 mm |
| Package weight | 40 g |
| Logistics data |
|---|
| Master (outer) case width | 149.9 mm |
| Master (outer) case length | 101.6 mm |
| Master (outer) case height | 185.4 mm |
| Master (outer) case gross weight | 440 g |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 85447000 |

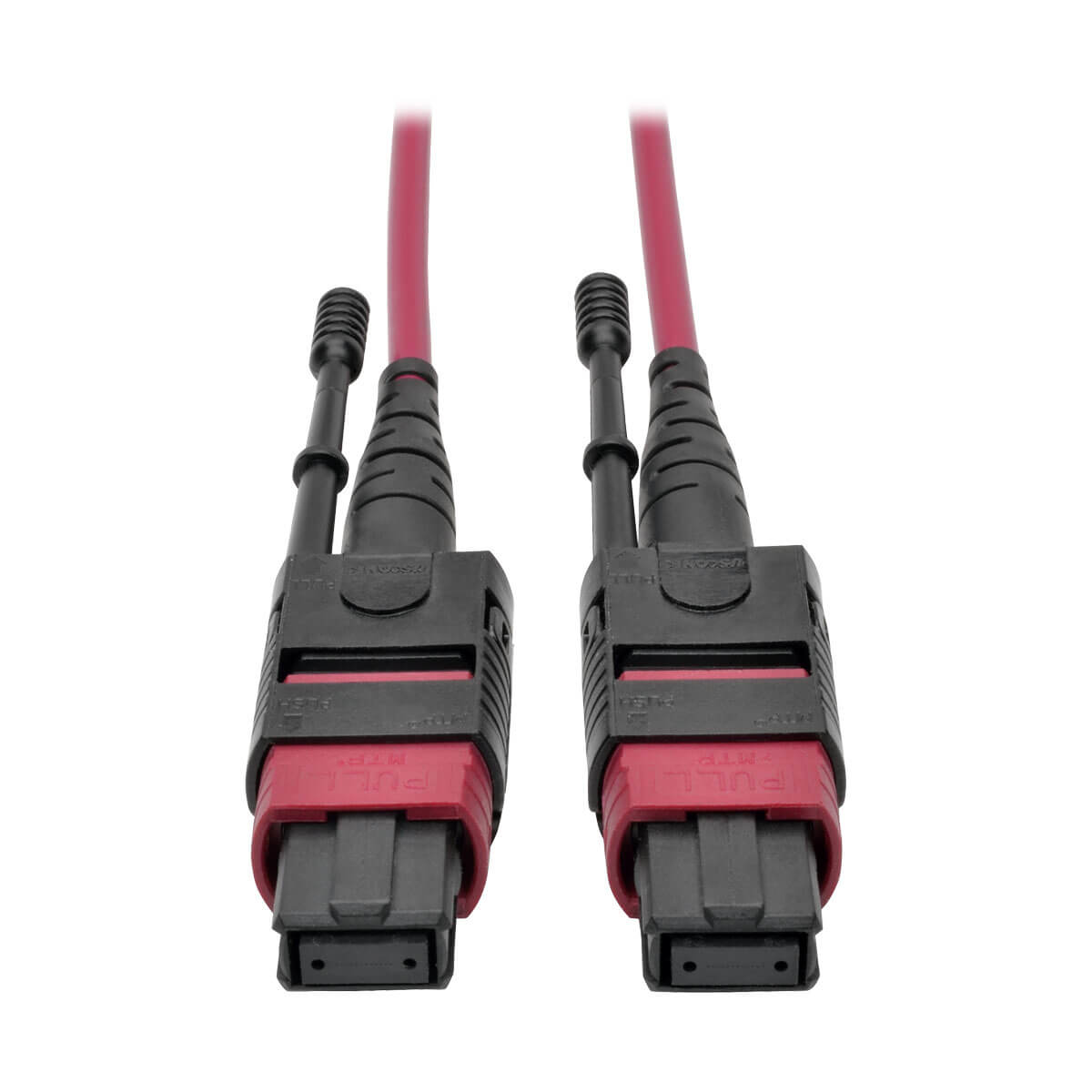

Tripp Lite N845-03M-12-MG 100G MTP/MPO Multimode OM4 Plenum-Rated Fiber Optic Cable (F/F), 12 Fiber, 40/100GBASE-SR4, Push/Pull Tabs, Magenta, 3 m | Technical details |
|---|
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | MPO/MTP |
| Cable type | CMP |
| Cable length | 3 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Master (outer) case GTIN (EAN/UPC) | 10037332200287 |
| Compliance certificates | RoHS |
| Features |
|---|
| Fibre optic type | OM4 |
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | MPO/MTP |
| Cable type | CMP |
| Cable length | 3 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Data transfer rate | 100 Gbit/s |
| Country of origin | China |
| Harmonized System (HS) code | 85447000 |
| Product colour | Magenta |
| Connector 2 gender | Female |
| Connector 1 gender | Female |
| Data transmission |
|---|
| Data transfer rate | 100 Gbit/s |
| Operational conditions |
|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions |
|---|
| Cable length | 3 m |
| Package width | 177.8 mm |
| Package depth | 12.7 mm |
| Package height | 228.6 mm |
| Package weight | 40 g |
| Packaging data |
|---|
| Package width | 177.8 mm |
| Package depth | 12.7 mm |
| Package height | 228.6 mm |
| Package weight | 40 g |
| Logistics data |
|---|
| Master (outer) case width | 149.9 mm |
| Master (outer) case length | 101.6 mm |
| Master (outer) case height | 185.4 mm |
| Master (outer) case gross weight | 440 g |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 85447000 |
£280.45
£233.71 In stock
<
