| Storage |
|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | SSD |
| Number of storage drives supported | 24 |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, F1, JBOD |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported | 2.5" |
| Total installed system drives capacity | 1000 TB |
| Processor |
|---|
| Processor manufacturer | Intel |
| Processor threads | 16 |
| Processor cache | 12 MB |
| Processor boost frequency | 2.7 GHz |
| CPU configuration (max) | 1 |
| Conflict-Free processor | Yes |
| Processor frequency | 2.1 GHz |
| Processor family | Intel® Xeon® D |
| Processor model | D-1541 |
| Processor cores | 8 |
| Memory |
|---|
| Internal memory type | DDR4 |
| Internal memory | 16 GB |
| Maximum RAM supported | 128 GB |
| Memory form factor | RDIMM |
| ECC | Yes |
| Network |
|---|
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Supported network protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| iSCSI support | Yes |
| Ports & interfaces |
|---|
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 7 |
| Hard drive |
|---|
| RAID support | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, F1, JBOD |
| Design |
|---|
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| LED indicators | Status |
| Chassis type | Rack (2U) |
| Technical details |
|---|
| Type | Storage server |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive |
| Product colour | Black |
| Number of users | 16000 user(s) |
| Multilingual support | Yes |
| LED indicators | Status |
| Chassis type | Rack (2U) |
| Number of fans | 4 fan(s) |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Performance |
|---|
| System log | Yes |
| Share folder | Yes |
| Browser supported | Google Chrome, Firefox, Microsoft Edge, Safari 13 |
| Type | Storage server |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive |
| Security algorithms | AES |
| Operating system version | 7.1 |
| Operating system installed | DSM |
| Number of users | 16000 user(s) |
| Multilingual support | Yes |
| Access Control List (ACL) | Yes |
| Snapshot | Yes |
| Cooling |
|---|
| Cooling type | Active |
| Number of fans | 4 fan(s) |
| Security |
|---|
| Security algorithms | AES |
| Access Control List (ACL) | Yes |
| Software |
|---|
| Operating system version | 7.1 |
| Operating system installed | DSM |
| Power |
|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions |
|---|
| Width | 430.5 mm |
| Depth | 692 mm |
| Height | 88 mm |
| Weight | 15 kg |
| Packaging content |
|---|
| Quick start guide | Yes |
| Cables included | AC |
| Power cables quantity | 2 |
| Processor special features |
|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Enhanced Halt State | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Sustainability |
|---|
| Sustainability compliance | Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Packaging data |
|---|
| Cables included | AC |
| Other features |
|---|
| Compliance certificates | CE, RoHS |
Synology FlashStation FS3410 NAS/storage server Rack (2U) Intel® Xeon® D D-1541 16 GB DDR4 DSM Black£6,521.52RRP £7,880.17

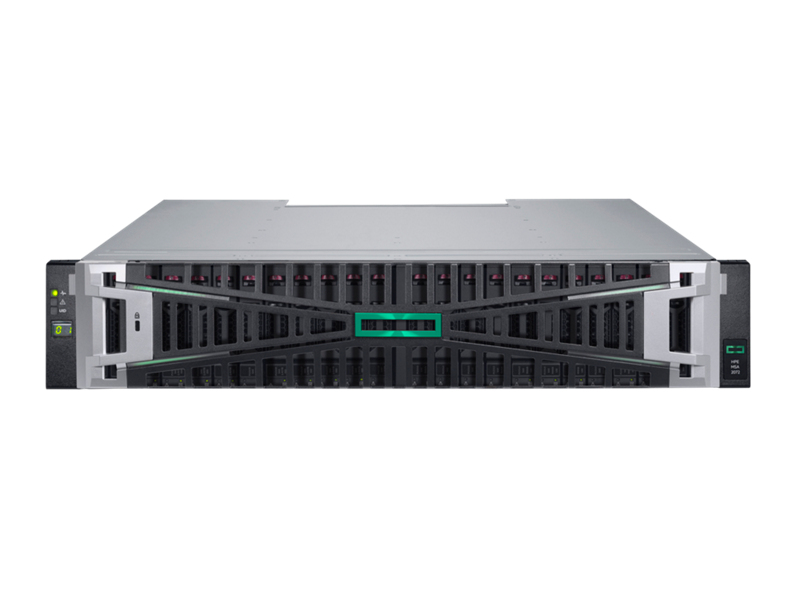

HPE MSA 2072 32Gb Fibre Channe Storage server Rack (2U)£25,161.30RRP £35,645.17
