Power Supply Units
-
| Cooling |
|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Performance |
|---|
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 3.0 |
| Noise level | 25 dB |
| Mean time between failures (MTBF) | 100000 h |
| Certification | cTUVus / TUV / CB / BSMI / CE / FCC / EAC / RCM / UACK |
| Bearing technology | Sleeve |
| Design |
|---|
| 80 PLUS certification | 80 PLUS Gold |
| Certification | cTUVus / TUV / CB / BSMI / CE / FCC / EAC / RCM / UACK |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Built-in display | No |
| Power |
|---|
| Total power | 750 W |
| Maximum input current (@220V) | 5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power factor | 0.95 |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | 10 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 100 ms |
| Efficiency | 90% |
| Ports & interfaces |
|---|
| Motherboard power cable length | 50 cm |
| SATA power cable length | 700 mm |
| Peripheral (Molex) power cable length | 400 mm |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 60 cm |
| Floppy disk drive cable length | 40 cm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates |
|---|
| Certification | cTUVus / TUV / CB / BSMI / CE / FCC / EAC / RCM / UACK |
| Compliance certificates | BSMI, CB, CE, EAC, Federal Communications Commission (FCC), cTUVus |
| 80 PLUS certification | 80 PLUS Gold |
| Packaging content |
|---|
| Cable tie(s) included | Yes |
| Weight & dimensions |
|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.8 kg |
| Packaging data |
|---|
| Package depth | 280 mm |
| Package width | 210 mm |
| Package height | 150 mm |
| Package weight | 1.87 kg |
| Technical details |
|---|
| Sustainability compliance | Yes |
| Warranty period | 5 year(s) |
| Compliance certificates | BSMI, CB, CE, EAC, Federal Communications Commission (FCC), cTUVus |
| Logistics data |
|---|
| Warranty period | 5 year(s) |

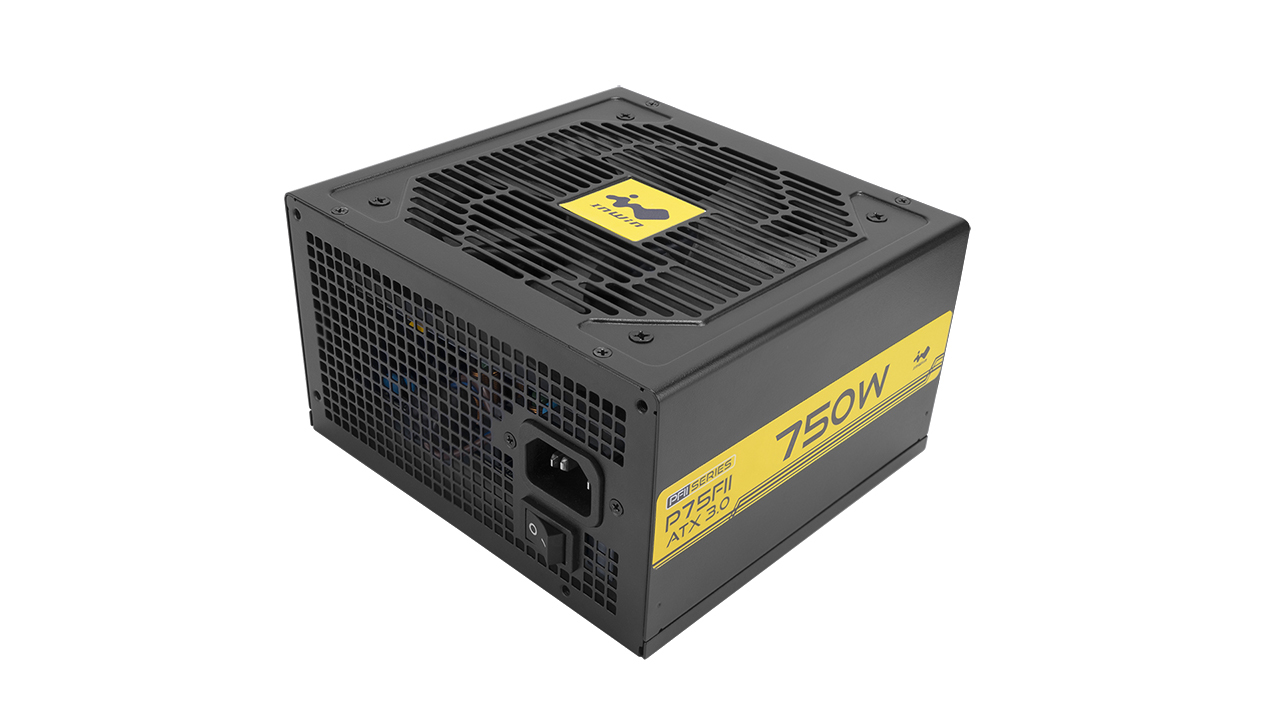

In Win P75FII power supply unit 750 W 24-pin ATX ATX Black | Cooling |
|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Performance |
|---|
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 3.0 |
| Noise level | 25 dB |
| Mean time between failures (MTBF) | 100000 h |
| Certification | cTUVus / TUV / CB / BSMI / CE / FCC / EAC / RCM / UACK |
| Bearing technology | Sleeve |
| Design |
|---|
| 80 PLUS certification | 80 PLUS Gold |
| Certification | cTUVus / TUV / CB / BSMI / CE / FCC / EAC / RCM / UACK |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Built-in display | No |
| Power |
|---|
| Total power | 750 W |
| Maximum input current (@220V) | 5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power factor | 0.95 |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | 10 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 100 ms |
| Efficiency | 90% |
| Ports & interfaces |
|---|
| Motherboard power cable length | 50 cm |
| SATA power cable length | 700 mm |
| Peripheral (Molex) power cable length | 400 mm |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 60 cm |
| Floppy disk drive cable length | 40 cm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates |
|---|
| Certification | cTUVus / TUV / CB / BSMI / CE / FCC / EAC / RCM / UACK |
| Compliance certificates | BSMI, CB, CE, EAC, Federal Communications Commission (FCC), cTUVus |
| 80 PLUS certification | 80 PLUS Gold |
| Packaging content |
|---|
| Cable tie(s) included | Yes |
| Weight & dimensions |
|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.8 kg |
| Packaging data |
|---|
| Package depth | 280 mm |
| Package width | 210 mm |
| Package height | 150 mm |
| Package weight | 1.87 kg |
| Technical details |
|---|
| Sustainability compliance | Yes |
| Warranty period | 5 year(s) |
| Compliance certificates | BSMI, CB, CE, EAC, Federal Communications Commission (FCC), cTUVus |
| Logistics data |
|---|
| Warranty period | 5 year(s) |
£173.66
£144.72 In stock
<
