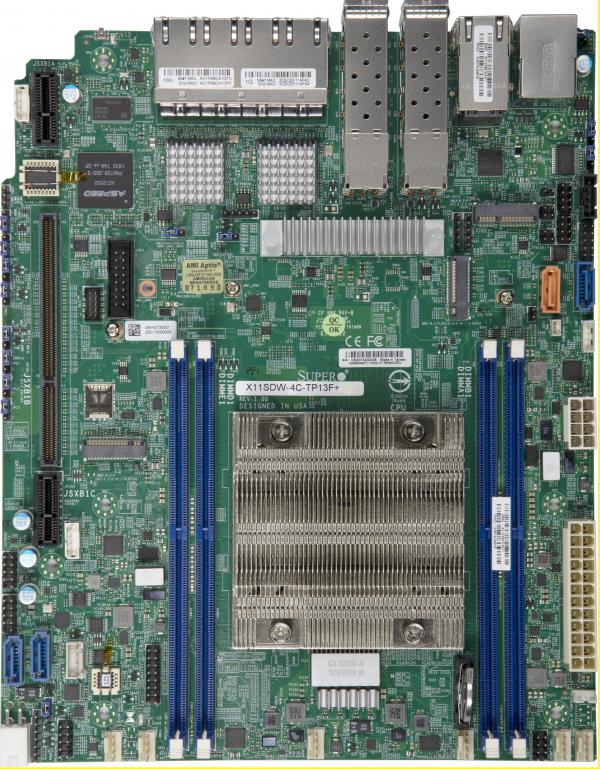

Name: Supermicro MBD-X11SDW-4C-TP13F+ System on Chip BGA 2518 WIO
Brand: Supermicro
SKU: MBD-X11SDW-4C-TP13F+-O
Price: 1163.84 GBP
Availability: InStock

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	2
Supported storage drive interfaces	SATA III
USB 2.0 connectors	4
TPM connector	Yes
Number of SATA III connectors	6
Number of COM connectors	1
Technical details
Motherboard chipset	Intel C246
PC health monitoring	Fan, LED, Temperature, Voltage
Number of processors supported	1
Number of DIMM slots	4
Motherboard form factor	WIO
Component for	Server
Thermal Design Power (TDP)	95 W
Performance
Motherboard chipset	Intel C246
RAID levels	0, 1, 5, 10
PC health monitoring	Fan, LED, Temperature, Voltage
Motherboard form factor	WIO
Component for	Server
Processor
Processor manufacturer	Intel
Thermal Design Power (TDP)	95 W
Compatible processor series	Intel® Celeron®, Intel® Pentium®, Intel® Xeon®
Processor socket	LGA 1151 (Socket H4)
Processor number of cores supported	6
Memory
Supported memory types	DDR4-SDRAM
Memory voltage	1.2 V
Supported memory clock speeds	2133,2400,2666 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive interfaces	SATA III
RAID levels	0, 1, 5, 10
RAID support	Yes
Graphics
On-board graphics card model	Aspeed AST2500
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	2
COM ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® I210-AT
Ethernet interface type	Gigabit Ethernet
Features
Motherboard chipset	Intel C246
PC health monitoring	Fan, LED, Temperature, Voltage
Motherboard form factor	WIO
Component for	Server
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	1
PCI Express x4 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
BIOS
BIOS type	UEFI
BIOS memory size	256 Mbit
ACPI version	6.0
UEFI version	2.7
System Management BIOS (SMBIOS) version	2.7
Real-time clock (RTC)	Yes
Plug and Play	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 90%
Software
Bundled software	Intel Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Logistics data
Harmonized System (HS) code	84733020
Weight & dimensions
Width	203.2 mm
Depth	330.2 mm
Packaging content
Bundled software	Intel Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Other features
Thermal Design Power (TDP)	95 W
PCI Express x4 (Gen 3.x) slots	1
Number of processors supported	1
Number of DIMM slots	4
UEFI version	2.7

Supermicro X11SCW-F Intel C246 LGA 1151 (Socket H4) WIO

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	2
Supported storage drive interfaces	SATA III
USB 2.0 connectors	4
TPM connector	Yes
Number of SATA III connectors	6
Number of COM connectors	1
Technical details
Motherboard chipset	Intel C246
PC health monitoring	Fan, LED, Temperature, Voltage
Number of processors supported	1
Number of DIMM slots	4
Motherboard form factor	WIO
Component for	Server
Thermal Design Power (TDP)	95 W
Performance
Motherboard chipset	Intel C246
RAID levels	0, 1, 5, 10
PC health monitoring	Fan, LED, Temperature, Voltage
Motherboard form factor	WIO
Component for	Server
Processor
Processor manufacturer	Intel
Thermal Design Power (TDP)	95 W
Compatible processor series	Intel® Celeron®, Intel® Pentium®, Intel® Xeon®
Processor socket	LGA 1151 (Socket H4)
Processor number of cores supported	6
Memory
Supported memory types	DDR4-SDRAM
Memory voltage	1.2 V
Supported memory clock speeds	2133,2400,2666 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive interfaces	SATA III
RAID levels	0, 1, 5, 10
RAID support	Yes
Graphics
On-board graphics card model	Aspeed AST2500
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	2
COM ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® I210-AT
Ethernet interface type	Gigabit Ethernet
Features
Motherboard chipset	Intel C246
PC health monitoring	Fan, LED, Temperature, Voltage
Motherboard form factor	WIO
Component for	Server
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	1
PCI Express x4 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
BIOS
BIOS type	UEFI
BIOS memory size	256 Mbit
ACPI version	6.0
UEFI version	2.7
System Management BIOS (SMBIOS) version	2.7
Real-time clock (RTC)	Yes
Plug and Play	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 90%
Software
Bundled software	Intel Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Logistics data
Harmonized System (HS) code	84733020
Weight & dimensions
Width	203.2 mm
Depth	330.2 mm
Packaging content
Bundled software	Intel Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Other features
Thermal Design Power (TDP)	95 W
PCI Express x4 (Gen 3.x) slots	1
Number of processors supported	1
Number of DIMM slots	4
UEFI version	2.7

£420.54

RRP £609.78

Save £259.33

In stock

More Info

Add to Wish List Add to Compare

Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Serial port headers	1
Motherboard form factor	WIO
Component for	Server
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Motherboard form factor	WIO
Component for	Server
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Pentium®, Intel Xeon E
Maximum number of SMP processors	1
Intel Xeon series	E-2300
Processor socket	LGA 1200 (Socket H5)
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory voltage	1.2 V
Supported memory clock speeds	2666,2933,3200 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Maximum internal memory	128 GB
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA
Graphics
Graphics card family	ASPEED
Graphics card	AST2600
Internal I/O
Supported storage drive interfaces	M.2, SATA
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	8
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	10 Gigabit Ethernet
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Motherboard form factor	WIO
Component for	Server
Expansion slots
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI
BIOS memory size	256 Mbit
ACPI version	6.0
System Management BIOS (SMBIOS) version	3.3
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 90%
Video
Graphics card family	ASPEED
Graphics card	AST2600
Weight & dimensions
Width	203.2 mm
Depth	330.2 mm
Other features
Intel Xeon series	E-2300

Supermicro X12STW-TF Intel C256 LGA 1200 (Socket H5) WIO

Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Serial port headers	1
Motherboard form factor	WIO
Component for	Server
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Motherboard form factor	WIO
Component for	Server
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Pentium®, Intel Xeon E
Maximum number of SMP processors	1
Intel Xeon series	E-2300
Processor socket	LGA 1200 (Socket H5)
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory voltage	1.2 V
Supported memory clock speeds	2666,2933,3200 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Maximum internal memory	128 GB
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA
Graphics
Graphics card family	ASPEED
Graphics card	AST2600
Internal I/O
Supported storage drive interfaces	M.2, SATA
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	8
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	10 Gigabit Ethernet
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Motherboard form factor	WIO
Component for	Server
Expansion slots
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI
BIOS memory size	256 Mbit
ACPI version	6.0
System Management BIOS (SMBIOS) version	3.3
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 90%
Video
Graphics card family	ASPEED
Graphics card	AST2600
Weight & dimensions
Width	203.2 mm
Depth	330.2 mm
Other features
Intel Xeon series	E-2300

£483.30

RRP £712.87

Save £310.12

In stock

More Info

Add to Wish List Add to Compare

Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Serial port headers	1
Motherboard form factor	WIO
Component for	Server
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Motherboard form factor	WIO
Component for	Server
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Pentium®, Intel Xeon E
Maximum number of SMP processors	1
Intel Xeon series	E-2300
Processor socket	LGA 1200 (Socket H5)
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory voltage	1.2 V
Supported memory clock speeds	2666,2933,3200 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Maximum internal memory	128 GB
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA
Graphics
Graphics card family	ASPEED
Graphics card	AST2600
Internal I/O
Supported storage drive interfaces	M.2, SATA
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	8
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	10 Gigabit Ethernet
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Motherboard form factor	WIO
Component for	Server
Expansion slots
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI
BIOS memory size	256 Mbit
ACPI version	6.0
System Management BIOS (SMBIOS) version	3.3
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 90%
Video
Graphics card family	ASPEED
Graphics card	AST2600
Weight & dimensions
Width	203.2 mm
Depth	330.2 mm
Other features
Intel Xeon series	E-2300

Supermicro X12STW-TF Intel C256 LGA 1200 (Socket H5) WIO

Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Serial port headers	1
Motherboard form factor	WIO
Component for	Server
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Motherboard form factor	WIO
Component for	Server
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Pentium®, Intel Xeon E
Maximum number of SMP processors	1
Intel Xeon series	E-2300
Processor socket	LGA 1200 (Socket H5)
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory voltage	1.2 V
Supported memory clock speeds	2666,2933,3200 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Maximum internal memory	128 GB
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA
Graphics
Graphics card family	ASPEED
Graphics card	AST2600
Internal I/O
Supported storage drive interfaces	M.2, SATA
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	8
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	10 Gigabit Ethernet
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Motherboard form factor	WIO
Component for	Server
Expansion slots
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI
BIOS memory size	256 Mbit
ACPI version	6.0
System Management BIOS (SMBIOS) version	3.3
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 90%
Video
Graphics card family	ASPEED
Graphics card	AST2600
Weight & dimensions
Width	203.2 mm
Depth	330.2 mm
Other features
Intel Xeon series	E-2300

£624.19

RRP £847.86

Save £327.70

In stock

More Info

Add to Wish List Add to Compare

Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Serial port headers	1
Motherboard form factor	WIO
Component for	Server
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Motherboard form factor	WIO
Component for	Server
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Pentium®, Intel Xeon E
Maximum number of SMP processors	1
Intel Xeon series	E-2300
Processor socket	LGA 1200 (Socket H5)
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory voltage	1.2 V
Supported memory clock speeds	2666,2933,3200 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Maximum internal memory	128 GB
ECC сompatibility	ECC
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA
Graphics
Graphics card family	ASPEED
Graphics card	AST2600
Internal I/O
Supported storage drive interfaces	M.2, SATA
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	8
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® I210-AT
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Motherboard form factor	WIO
Component for	Server
Expansion slots
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI
BIOS memory size	256 Mbit
ACPI version	6.0
System Management BIOS (SMBIOS) version	3.3
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 90%
Video
Graphics card family	ASPEED
Graphics card	AST2600
Weight & dimensions
Width	203.2 mm
Depth	330.2 mm
Other features
Intel Xeon series	E-2300

Supermicro X12STW-F Intel C256 LGA 1200 (Socket H5) WIO

Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Serial port headers	1
Motherboard form factor	WIO
Component for	Server
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Motherboard form factor	WIO
Component for	Server
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Pentium®, Intel Xeon E
Maximum number of SMP processors	1
Intel Xeon series	E-2300
Processor socket	LGA 1200 (Socket H5)
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory voltage	1.2 V
Supported memory clock speeds	2666,2933,3200 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Maximum internal memory	128 GB
ECC сompatibility	ECC
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA
Graphics
Graphics card family	ASPEED
Graphics card	AST2600
Internal I/O
Supported storage drive interfaces	M.2, SATA
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	8
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® I210-AT
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Motherboard form factor	WIO
Component for	Server
Expansion slots
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI
BIOS memory size	256 Mbit
ACPI version	6.0
System Management BIOS (SMBIOS) version	3.3
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 90%
Video
Graphics card family	ASPEED
Graphics card	AST2600
Weight & dimensions
Width	203.2 mm
Depth	330.2 mm
Other features
Intel Xeon series	E-2300

£471.70

RRP £703.62

Save £310.54

In stock

More Info

Add to Wish List Add to Compare

Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel SoC
Number of processors supported	1
Number of DIMM slots	4
Motherboard form factor	WIO
Component for	Server
Thermal Design Power (TDP)	60 W
Performance
Motherboard chipset family	Intel
Motherboard chipset	Intel SoC
RAID levels	0, 1, 5, 10
Motherboard form factor	WIO
Component for	Server
Processor
Processor manufacturer	Intel
Processor cores	4
Thermal Design Power (TDP)	60 W
Processor model	D-2123IT
Compatible processor series	Intel® Xeon®
Processor socket	BGA 2518
Processor number of cores supported	4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory voltage	1.2 V
Supported memory clock speeds	2133,2400,2666 MHz
Supported memory module capacities	8GB, 16GB, 32GB, 64GB, 128GB
Maximum internal memory	512 GB
Maximum RDIMM memory	256 GB
Supported memory clock speed (max)	2666 MHz
ECC сompatibility	ECC
Storage controllers
Supported storage drive interfaces	SATA III
RAID levels	0, 1, 5, 10
RAID support	Yes
Graphics
On-board graphics card model	Aspeed AST2500
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	SATA III
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
TPM connector	Yes
Number of SATA III connectors	4
Number of COM connectors	1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	0
VGA (D-Sub) ports quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	9
DVI-D ports quantity	0
COM ports quantity	1
IPMI LAN (RJ-45) port	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel SoC
Motherboard form factor	WIO
Component for	Server
BIOS
BIOS type	UEFI
BIOS memory size	256 Mbit
ACPI version	6.1
System Management BIOS (SMBIOS) version	3.1
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 90%
Weight & dimensions
Width	203.2 mm
Depth	254 mm
Other features
Thermal Design Power (TDP)	60 W
Number of processors supported	1
Number of DIMM slots	4
Supported DIMM module capacities	8GB, 16GB, 32GB, 64GB, 128MB
Maximum LRDIMM memory	512 GB

Supermicro MBD-X11SDW-4C-TP13F+-B motherboard Intel SoC BGA 2518 WIO

Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel SoC
Number of processors supported	1
Number of DIMM slots	4
Motherboard form factor	WIO
Component for	Server
Thermal Design Power (TDP)	60 W
Performance
Motherboard chipset family	Intel
Motherboard chipset	Intel SoC
RAID levels	0, 1, 5, 10
Motherboard form factor	WIO
Component for	Server
Processor
Processor manufacturer	Intel
Processor cores	4
Thermal Design Power (TDP)	60 W
Processor model	D-2123IT
Compatible processor series	Intel® Xeon®
Processor socket	BGA 2518
Processor number of cores supported	4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory voltage	1.2 V
Supported memory clock speeds	2133,2400,2666 MHz
Supported memory module capacities	8GB, 16GB, 32GB, 64GB, 128GB
Maximum internal memory	512 GB
Maximum RDIMM memory	256 GB
Supported memory clock speed (max)	2666 MHz
ECC сompatibility	ECC
Storage controllers
Supported storage drive interfaces	SATA III
RAID levels	0, 1, 5, 10
RAID support	Yes
Graphics
On-board graphics card model	Aspeed AST2500
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	SATA III
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
TPM connector	Yes
Number of SATA III connectors	4
Number of COM connectors	1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	0
VGA (D-Sub) ports quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	9
DVI-D ports quantity	0
COM ports quantity	1
IPMI LAN (RJ-45) port	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel SoC
Motherboard form factor	WIO
Component for	Server
BIOS
BIOS type	UEFI
BIOS memory size	256 Mbit
ACPI version	6.1
System Management BIOS (SMBIOS) version	3.1
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 90%
Weight & dimensions
Width	203.2 mm
Depth	254 mm
Other features
Thermal Design Power (TDP)	60 W
Number of processors supported	1
Number of DIMM slots	4
Supported DIMM module capacities	8GB, 16GB, 32GB, 64GB, 128MB
Maximum LRDIMM memory	512 GB
