Networking
-
| Management features |
|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces |
|---|
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Fast Ethernet (copper) ports quantity | 48 |
| SFP/SFP+ slots quantity | 4 |
| Fiber optic connector | SFP |
| Network |
|---|
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | No |
| Virtual LAN features |
|---|
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission |
|---|
| Number of VLANs | 256 |
| MAC address table | 16000 entries |
| Supported data transfer rates | 10, 100, 1000 |
| Number of trunks | 12 |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1000 Gbit/s |
| Optical fiber |
|---|
| Fiber optic connector | SFP |
| Performance |
|---|
| Stackable | No |
| Technical details |
|---|
| Form factor | 1U |
| Product colour | Black |
| Stackable | No |
| Rack mounting | Yes |
| Security |
|---|
| Static port security | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SSH, SSH-2 |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast features |
|---|
| Multicast support | Yes |
| Protocols |
|---|
| Management protocols | SNMP v1/v2c/v3, RMON, IGMP v1/v2/v3 |
| Supported network protocols | IPv4/v6, SNMP, RADIUS, TACACS+, DSCP, TOS, TCP, UDP, SA, DA, DNS |
| Certificates |
|---|
| Certification | RoHS |
| Design |
|---|
| Form factor | 1U |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Certification | RoHS |
| Rack mounting | Yes |
| Indication |
|---|
| LED indicators | Yes |
| Power |
|---|
| Output power | 500 W |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions |
|---|
| Width | 440 mm |
| Depth | 379 mm |
| Height | 43 mm |
| Weight | 5.3 kg |

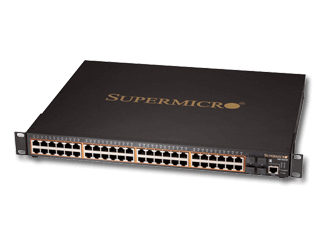

Supermicro SSE-G2252P network switch Managed L2 Power over Ethernet (PoE) 1U Black | Management features |
|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces |
|---|
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Fast Ethernet (copper) ports quantity | 48 |
| SFP/SFP+ slots quantity | 4 |
| Fiber optic connector | SFP |
| Network |
|---|
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | No |
| Virtual LAN features |
|---|
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission |
|---|
| Number of VLANs | 256 |
| MAC address table | 16000 entries |
| Supported data transfer rates | 10, 100, 1000 |
| Number of trunks | 12 |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1000 Gbit/s |
| Optical fiber |
|---|
| Fiber optic connector | SFP |
| Performance |
|---|
| Stackable | No |
| Technical details |
|---|
| Form factor | 1U |
| Product colour | Black |
| Stackable | No |
| Rack mounting | Yes |
| Security |
|---|
| Static port security | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SSH, SSH-2 |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast features |
|---|
| Multicast support | Yes |
| Protocols |
|---|
| Management protocols | SNMP v1/v2c/v3, RMON, IGMP v1/v2/v3 |
| Supported network protocols | IPv4/v6, SNMP, RADIUS, TACACS+, DSCP, TOS, TCP, UDP, SA, DA, DNS |
| Certificates |
|---|
| Certification | RoHS |
| Design |
|---|
| Form factor | 1U |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Certification | RoHS |
| Rack mounting | Yes |
| Indication |
|---|
| LED indicators | Yes |
| Power |
|---|
| Output power | 500 W |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions |
|---|
| Width | 440 mm |
| Depth | 379 mm |
| Height | 43 mm |
| Weight | 5.3 kg |
£1,934.46
£1,612.05RRP £2,498.68Save £886.63
In stock
-
| Features |
|---|
| Product type | Voice network module |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 90% |

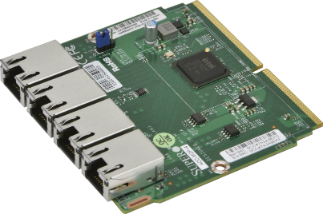

Supermicro AOC-MGP-i4M Voice network module | Features |
|---|
| Product type | Voice network module |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 90% |
£147.74
£123.12 In stock
<
