| Management features |
|---|
| Reset button | Yes |
| Multicast support | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Ports & interfaces |
|---|
| Terminal block port | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Network |
|---|
| IGMP snooping | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4095 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Virtual LAN features | Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN |
| Virtual LAN features |
|---|
| VLAN support | Yes |
| Number of VLANs | 4095 |
| Virtual LAN features | Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN |
| Data transmission |
|---|
| Number of multicast groups filtered | 255 |
| Number of VLANs | 4095 |
| Jumbo frames | 9000 |
| Throughput | 17.85 Mpps |
| Number of IP interfaces | 8 |
| MAC address table | 8000 entries |
| Switching capacity | 24 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Performance |
|---|
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details |
|---|
| Product colour | Blue, White |
| Housing material | Aluminium |
| Rack mounting | No |
| Optical fiber |
|---|
| Fiber ethernet cabling technology | 100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX |
| Security |
|---|
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features |
|---|
| Number of multicast groups filtered | 255 |
| Multicast support | Yes |
| Protocols |
|---|
| Management protocols | Telnet, SNMP |
| Supported network protocols | IPv4 / IPv6 |
| Design |
|---|
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| Reset button | Yes |
| DIN rail mounting | Yes |
| Product colour | Blue, White |
| LED indicators | Yes |
| Housing material | Aluminium |
| Rack mounting | No |
| Indication |
|---|
| LED indicators | Yes |
| Power |
|---|
| Power consumption (max) | 12 W |
| Power consumption (typical) | 6.5 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) | No |
| Operational conditions |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 22.18 BTU/h |
| Weight & dimensions |
|---|
| Width | 76 mm |
| Depth | 107 mm |
| Height | 152 mm |
| Weight | 1.01 kg |
| Logistics data |
|---|
| Harmonized System (HS) code | 85176990 |
| Other features |
|---|
| Terminal block port | Yes |
Trendnet TI-PG80 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black£187.46RRP £260.89
PLANET IGS-801T network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Blue£134.78RRP £157.25
PLANET ISW-801T network switch Unmanaged L2 Fast Ethernet (10/100) Blue£80.72RRP £106.96
PLANET IGS-12040MT network switch Managed L2+ Gigabit Ethernet (10/100/1000) Blue, White£360.24RRP £525.36

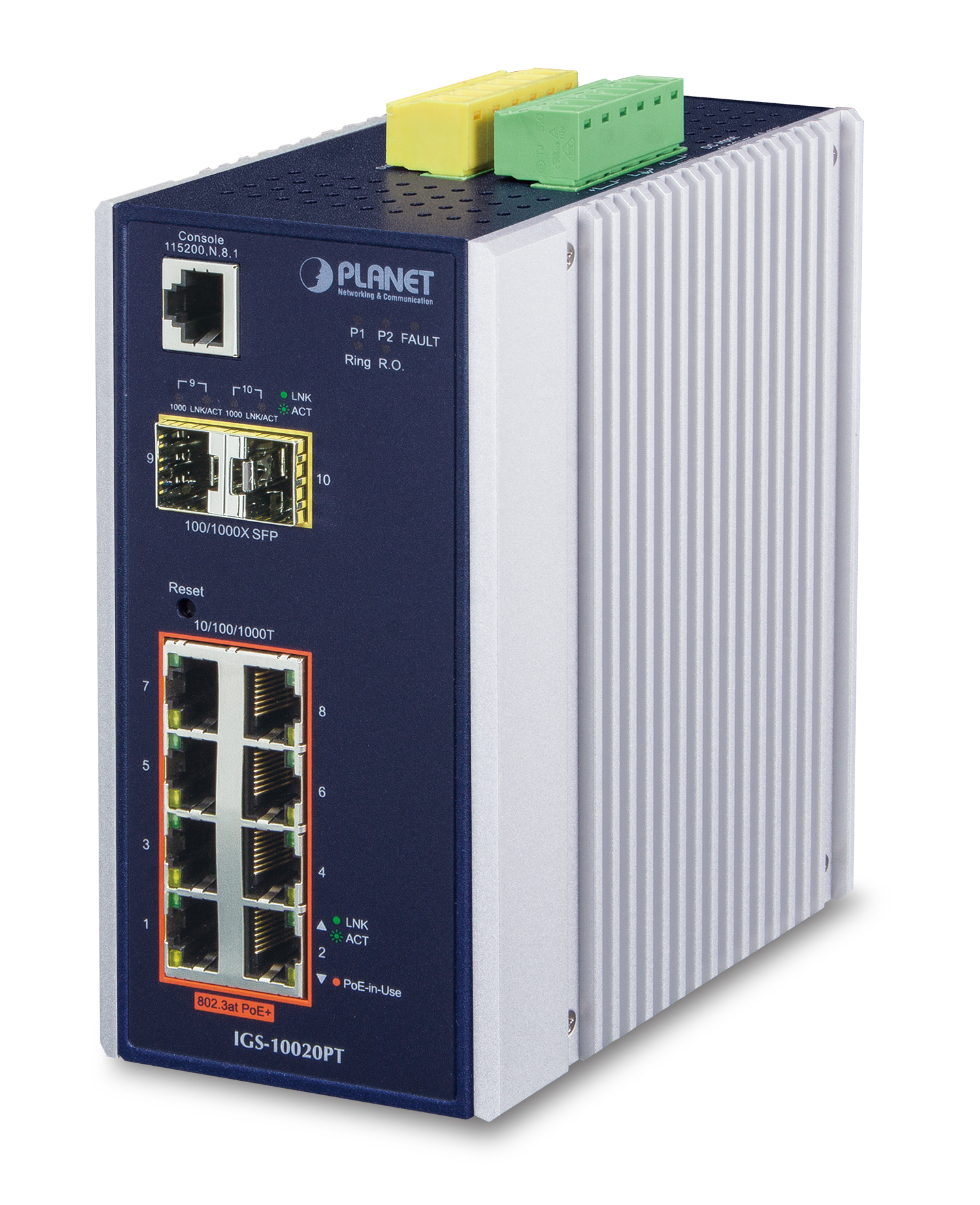

PLANET IGS-10020PT network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, White£375.74RRP £504.12
