Switches
-
| Management features |
|---|
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
| Network |
|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission |
|---|
| Packet buffer memory | 4 MB |
| MAC address table | 16000 entries |
| Switching capacity | 14.8 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 11.01 Mpps |
| Number of VLANs | 4094 |
| Security |
|---|
| Loop protection | Yes |
| DHCP features | DHCP client |
| Design |
|---|
| Form factor | 1U |
| Product colour | Blue |
| Housing material | Metal |
| Rack mounting | Yes |
| Power |
|---|
| Power consumption (max) | 400 W |
| AC input voltage | 100 - 240 V |
| Input current | 6.5 A |
| Power source | AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features |
|---|
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Weight & dimensions |
|---|
| Width | 440 mm |
| Depth | 221 mm |
| Height | 44 mm |
| Weight | 2.83 kg |
| Performance |
|---|
| Packet buffer memory | 4 MB |
| Technical details |
|---|
| Form factor | 1U |
| Product colour | Blue |
| Housing material | Metal |
| Rack mounting | Yes |
| Memory |
|---|
| Packet buffer memory | 4 MB |

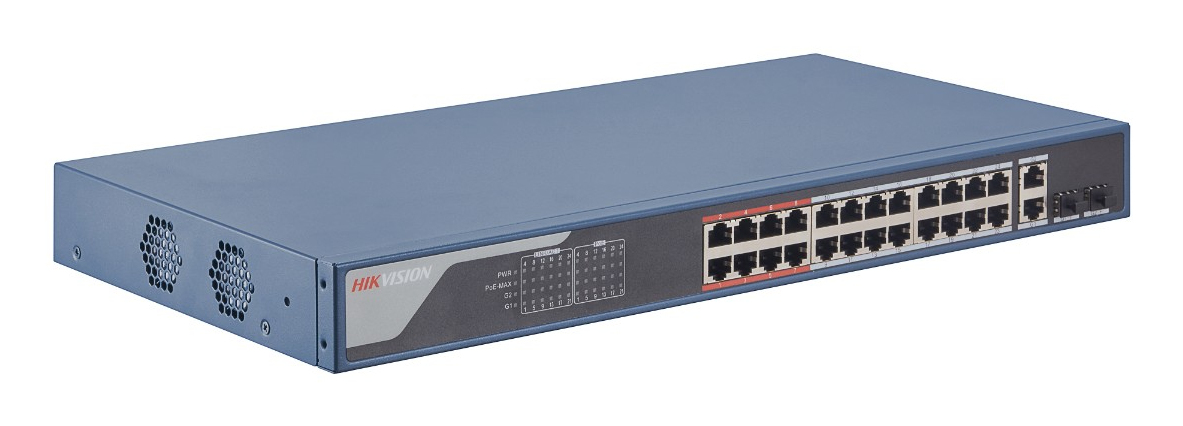

Hikvision DS-3E1326P-EI(B) network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Blue | Management features |
|---|
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
| Network |
|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission |
|---|
| Packet buffer memory | 4 MB |
| MAC address table | 16000 entries |
| Switching capacity | 14.8 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 11.01 Mpps |
| Number of VLANs | 4094 |
| Security |
|---|
| Loop protection | Yes |
| DHCP features | DHCP client |
| Design |
|---|
| Form factor | 1U |
| Product colour | Blue |
| Housing material | Metal |
| Rack mounting | Yes |
| Power |
|---|
| Power consumption (max) | 400 W |
| AC input voltage | 100 - 240 V |
| Input current | 6.5 A |
| Power source | AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features |
|---|
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Weight & dimensions |
|---|
| Width | 440 mm |
| Depth | 221 mm |
| Height | 44 mm |
| Weight | 2.83 kg |
| Performance |
|---|
| Packet buffer memory | 4 MB |
| Technical details |
|---|
| Form factor | 1U |
| Product colour | Blue |
| Housing material | Metal |
| Rack mounting | Yes |
| Memory |
|---|
| Packet buffer memory | 4 MB |
£276.35
£230.29 In stock
<
