Switches
-
| Management features |
|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Fast Ethernet (copper) ports quantity | 8 |
| Fiber ports quantity | 1 |
| Network |
|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission |
|---|
| MAC address table | 16000 entries |
| Switching capacity | 5.6 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 4.16 Mpps |
| Number of VLANs | 4094 |
| Security |
|---|
| Security algorithms | SNMP |
| Multicast features |
|---|
| Multicast support | Yes |
| Design |
|---|
| International Protection (IP) code | IP40 |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Certification | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
| Power |
|---|
| Power consumption (max) | 120 W |
| Power supply included | Yes |
| Power consumption (typical) | 5 W |
| Input voltage | 48 DC |
| Power source | DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 110 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features |
|---|
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Weight & dimensions |
|---|
| Width | 197 mm |
| Depth | 42.2 mm |
| Height | 114.2 mm |
| Weight | 600 g |
| Packaging data |
|---|
| Package weight | 1.2 kg |
| Performance |
|---|
| Stackable | No |
| Technical details |
|---|
| Product colour | Black |
| Stackable | No |
| Housing material | Metal |
| Rack mounting | No |
| Certificates |
|---|
| Certification | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
| Indication |
|---|
| LED indicators | Yes |
| Other features |
|---|
| Input voltage | 48 DC |

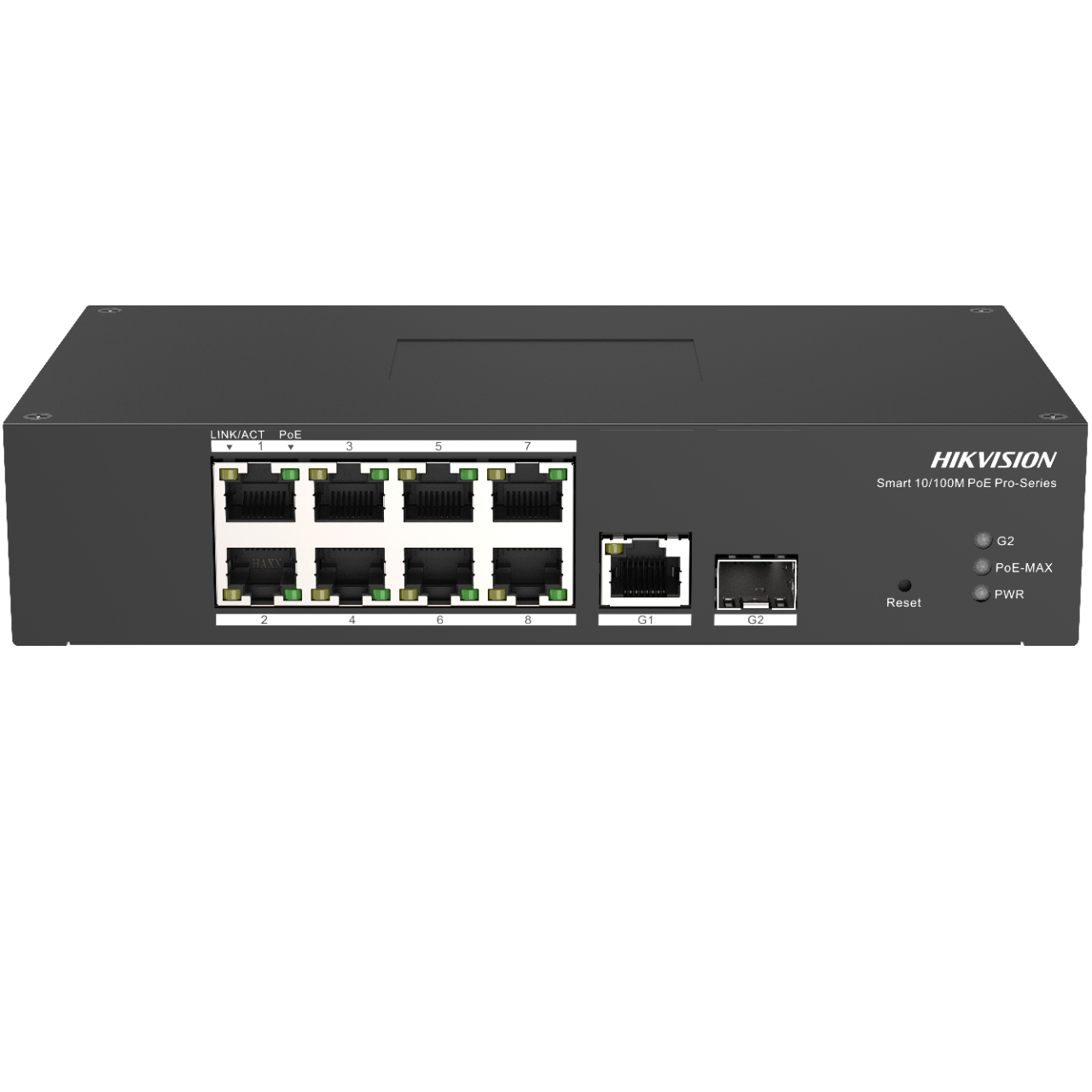

Hikvision DS-3T1310P-SI/HS network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black | Management features |
|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Fast Ethernet (copper) ports quantity | 8 |
| Fiber ports quantity | 1 |
| Network |
|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission |
|---|
| MAC address table | 16000 entries |
| Switching capacity | 5.6 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 4.16 Mpps |
| Number of VLANs | 4094 |
| Security |
|---|
| Security algorithms | SNMP |
| Multicast features |
|---|
| Multicast support | Yes |
| Design |
|---|
| International Protection (IP) code | IP40 |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Certification | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
| Power |
|---|
| Power consumption (max) | 120 W |
| Power supply included | Yes |
| Power consumption (typical) | 5 W |
| Input voltage | 48 DC |
| Power source | DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 110 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features |
|---|
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Weight & dimensions |
|---|
| Width | 197 mm |
| Depth | 42.2 mm |
| Height | 114.2 mm |
| Weight | 600 g |
| Packaging data |
|---|
| Package weight | 1.2 kg |
| Performance |
|---|
| Stackable | No |
| Technical details |
|---|
| Product colour | Black |
| Stackable | No |
| Housing material | Metal |
| Rack mounting | No |
| Certificates |
|---|
| Certification | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
| Indication |
|---|
| LED indicators | Yes |
| Other features |
|---|
| Input voltage | 48 DC |
£127.26
£106.05 In stock
<
