Public Displays

Display
Panel type	IPS
Display number of colours	16.7 million colours
Number of simultaneous touchpoints	10
Touchscreen	Yes
Active display area (W x H)	216.96 x 135.6 mm
Display technology	LED
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Display brightness	500 cd/m²
HD type	HD
Response time	29 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.1695 x 0.1695 mm
Display diagonal (metric)	25.7 cm
Native aspect ratio	16:10
Horizontal scan range	30 - 49.7 kHz
Maximum frame rate	75 fps
Touchscreen technology	Projected capacitive system
Surface hardness	7H
Glass thickness	3.3 mm
Ports & interfaces
USB port	Yes
DisplayPorts quantity	1
Ethernet LAN	Yes
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) input ports	1
Ethernet LAN (RJ-45) ports	1
USB ports quantity	1
Design
Product design	Interactive flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Product colour	Black
Panel mounting interface	100 x 100 mm
Certification	CB, CE, TÜV-Bauart, EAC, cULus
VESA mounting	Yes
Screen shape	Flat
Wall mountable	Yes
Performance
Purpose	Universal
International Protection (IP) code	IP65
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	Simplified Chinese, German, English, Spanish, French, Italian, Japanese
On Screen Display (OSD)	Yes
Number of OSD languages	7
HDCP	Yes
Plug and Play	Yes
Power
Power consumption (off)	0.3 W
Power consumption (typical)	6 W
Power consumption (standby)	1.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	C
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	6 kWh
Weight & dimensions
Display width	260.5 mm
Display depth	39.5 mm
Display height	183.5 mm
Display weight	1.4 kg
Packaging data
Package width	310 mm
Package depth	370 mm
Package height	160 mm
Package weight	2.7 kg
Quick start guide	Yes
Remote control included	Yes
Cables included	AC, DisplayPort, HDMI, USB
Packaging content
Quick start guide	Yes
Remote control included	Yes
Cables included	AC, DisplayPort, HDMI, USB
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Certificates
Certification	CB, CE, TÜV-Bauart, EAC, cULus
Technical details
VESA mounting	Yes
Panel type	IPS
Number of simultaneous touchpoints	10
Audio out (mini jack)	1
Sustainability
European Product Registry for Energy Labelling (EPREL) code	378636
Features
Wall mountable	Yes
Other features
Panel type	IPS
Number of simultaneous touchpoints	10
Mean time between failures (MTBF)	50000 h
Display technology	LED
Quick start guide	Yes
Plug and Play	Yes
Energy efficiency scale	A to G

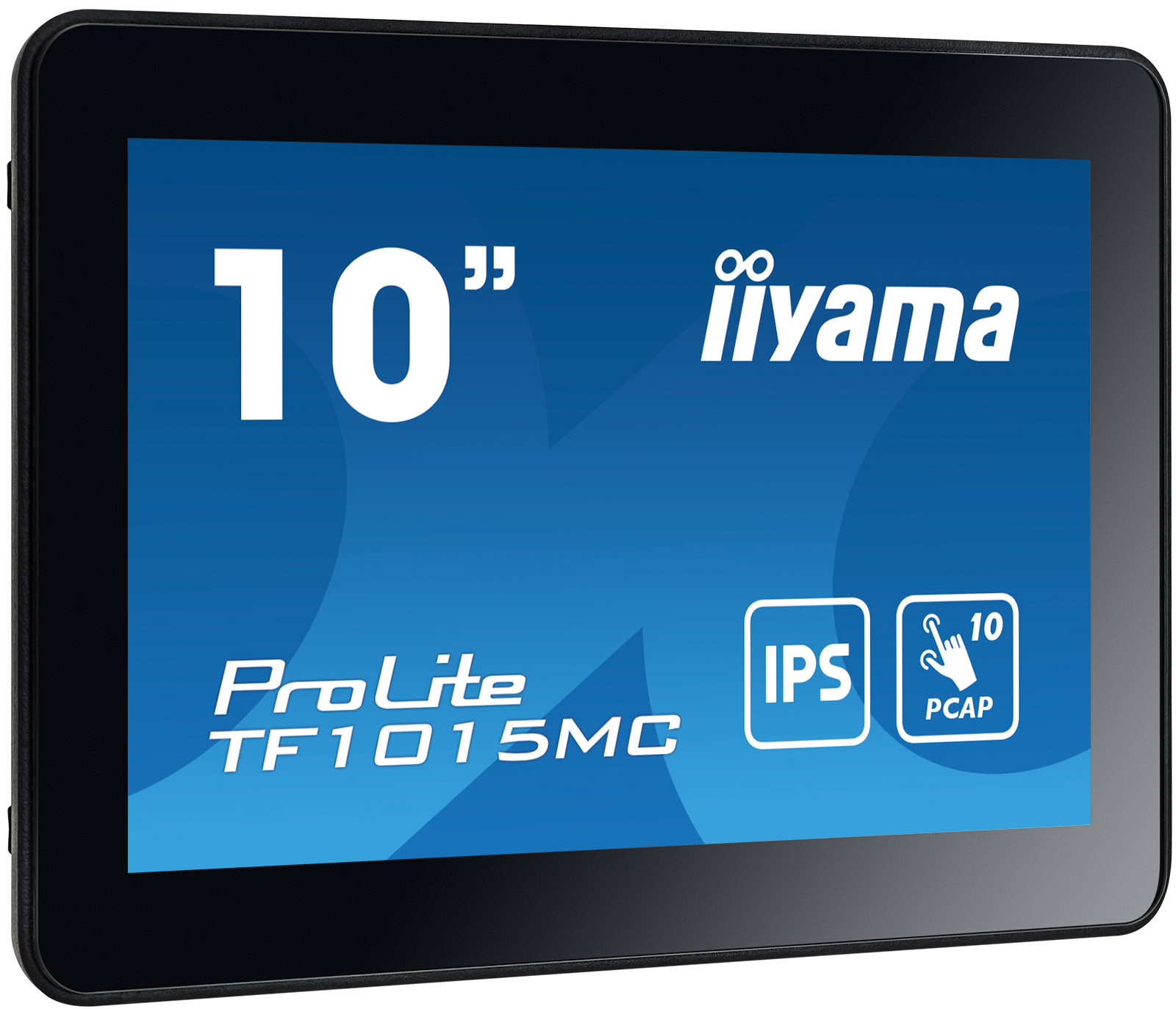

iiyama 10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration

Display
Panel type	IPS
Display number of colours	16.7 million colours
Number of simultaneous touchpoints	10
Touchscreen	Yes
Active display area (W x H)	216.96 x 135.6 mm
Display technology	LED
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Display brightness	500 cd/m²
HD type	HD
Response time	29 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.1695 x 0.1695 mm
Display diagonal (metric)	25.7 cm
Native aspect ratio	16:10
Horizontal scan range	30 - 49.7 kHz
Maximum frame rate	75 fps
Touchscreen technology	Projected capacitive system
Surface hardness	7H
Glass thickness	3.3 mm
Ports & interfaces
USB port	Yes
DisplayPorts quantity	1
Ethernet LAN	Yes
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) input ports	1
Ethernet LAN (RJ-45) ports	1
USB ports quantity	1
Design
Product design	Interactive flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Product colour	Black
Panel mounting interface	100 x 100 mm
Certification	CB, CE, TÜV-Bauart, EAC, cULus
VESA mounting	Yes
Screen shape	Flat
Wall mountable	Yes
Performance
Purpose	Universal
International Protection (IP) code	IP65
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	Simplified Chinese, German, English, Spanish, French, Italian, Japanese
On Screen Display (OSD)	Yes
Number of OSD languages	7
HDCP	Yes
Plug and Play	Yes
Power
Power consumption (off)	0.3 W
Power consumption (typical)	6 W
Power consumption (standby)	1.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	C
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	6 kWh
Weight & dimensions
Display width	260.5 mm
Display depth	39.5 mm
Display height	183.5 mm
Display weight	1.4 kg
Packaging data
Package width	310 mm
Package depth	370 mm
Package height	160 mm
Package weight	2.7 kg
Quick start guide	Yes
Remote control included	Yes
Cables included	AC, DisplayPort, HDMI, USB
Packaging content
Quick start guide	Yes
Remote control included	Yes
Cables included	AC, DisplayPort, HDMI, USB
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Certificates
Certification	CB, CE, TÜV-Bauart, EAC, cULus
Technical details
VESA mounting	Yes
Panel type	IPS
Number of simultaneous touchpoints	10
Audio out (mini jack)	1
Sustainability
European Product Registry for Energy Labelling (EPREL) code	378636
Features
Wall mountable	Yes
Other features
Panel type	IPS
Number of simultaneous touchpoints	10
Mean time between failures (MTBF)	50000 h
Display technology	LED
Quick start guide	Yes
Plug and Play	Yes
Energy efficiency scale	A to G
