640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2048 x 1280, 2560 x 1600 (WQXGA)
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1600p
Backlight type
LED
Display resolution
2560 x 1600 pixels
Response time
8 ms
Display diagonal
76.2 cm (30")
Contrast ratio (typical)
1000:1
Response time (fast)
6 ms
Touchscreen
No
Panel type
IPS
Multimedia
Built-in speaker(s)
No
Built-in camera
No
Design
Market positioning
Business
Product colour
Black
Camera
Built-in camera
No
Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-B
Number of upstream ports
2
USB Type-A downstream ports quantity
4
Headphone out
No
DVI port
No
HDMI ports quantity
2
Mini DisplayPorts quantity
1
DisplayPorts quantity
2
Audio input
No
Audio output
Yes
HDMI
Yes
HDMI version
1.4
DisplayPort version
1.2
Technical details
Height (without stand)
447.1 mm
Depth (without stand)
58 mm
Width (without stand)
686.9 mm
Cable lock slot
Yes
HDMI
Yes
Product colour
Black
Sustainability certificates
ENERGY STAR
Weight (with stand)
9.3 kg
Touchscreen
No
Ergonomics
VESA mounting
Yes
Cable lock slot
Yes
Swivelling
Yes
Swivel angle range
-30 - 30°
Tilt angle range
-5 - 21°
Pivot
Yes
Pivot angle
-90 - 90°
Height adjustment
Yes
Tilt adjustment
Yes
Adjustable height (max)
15 cm
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
108 W
Power consumption (standby)
0.3 W
Power consumption (typical)
35.8 W
Power consumption (off)
0.2 W
Input current
1.6 A
Energy efficiency scale
A to G
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
36 kWh
European Product Registry for Energy Labelling (EPREL) code
344915
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Height (without stand)
447.1 mm
Depth (without stand)
58 mm
Width (without stand)
686.9 mm
Width (with stand)
686.9 mm
Depth (with stand)
217 mm
Height (with stand)
632.3 mm
Bezel width (side)
2.27 cm
Bezel width (top)
2.27 cm
Bezel width (bottom)
2.35 cm
Weight (with stand)
9.3 kg
Weight (without stand)
6.49 kg
Package weight
13.1 kg
Packaging data
Package weight
13.1 kg
Sustainability
European Product Registry for Energy Labelling (EPREL) code
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2048 x 1280, 2560 x 1600 (WQXGA)
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1600p
Backlight type
LED
Display resolution
2560 x 1600 pixels
Response time
8 ms
Display diagonal
76.2 cm (30")
Contrast ratio (typical)
1000:1
Response time (fast)
6 ms
Touchscreen
No
Panel type
IPS
Multimedia
Built-in speaker(s)
No
Built-in camera
No
Design
Market positioning
Business
Product colour
Black
Camera
Built-in camera
No
Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-B
Number of upstream ports
2
USB Type-A downstream ports quantity
4
Headphone out
No
DVI port
No
HDMI ports quantity
2
Mini DisplayPorts quantity
1
DisplayPorts quantity
2
Audio input
No
Audio output
Yes
HDMI
Yes
HDMI version
1.4
DisplayPort version
1.2
Technical details
Height (without stand)
447.1 mm
Depth (without stand)
58 mm
Width (without stand)
686.9 mm
Cable lock slot
Yes
HDMI
Yes
Product colour
Black
Sustainability certificates
ENERGY STAR
Weight (with stand)
9.3 kg
Touchscreen
No
Ergonomics
VESA mounting
Yes
Cable lock slot
Yes
Swivelling
Yes
Swivel angle range
-30 - 30°
Tilt angle range
-5 - 21°
Pivot
Yes
Pivot angle
-90 - 90°
Height adjustment
Yes
Tilt adjustment
Yes
Adjustable height (max)
15 cm
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
108 W
Power consumption (standby)
0.3 W
Power consumption (typical)
35.8 W
Power consumption (off)
0.2 W
Input current
1.6 A
Energy efficiency scale
A to G
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
36 kWh
European Product Registry for Energy Labelling (EPREL) code
344915
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Height (without stand)
447.1 mm
Depth (without stand)
58 mm
Width (without stand)
686.9 mm
Width (with stand)
686.9 mm
Depth (with stand)
217 mm
Height (with stand)
632.3 mm
Bezel width (side)
2.27 cm
Bezel width (top)
2.27 cm
Bezel width (bottom)
2.35 cm
Weight (with stand)
9.3 kg
Weight (without stand)
6.49 kg
Package weight
13.1 kg
Packaging data
Package weight
13.1 kg
Sustainability
European Product Registry for Energy Labelling (EPREL) code

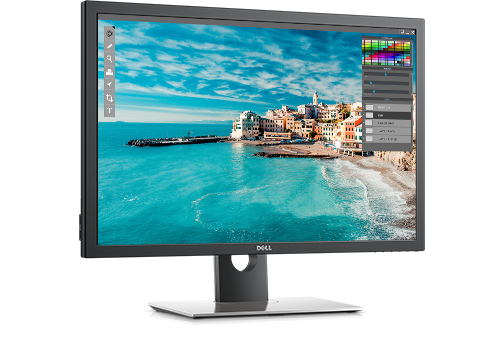

DELL UltraSharp UP3017A LED display 76.2 cm (30") 2560 x 1600 pixels WQXGA LCD Black£1,282.03RRP £1,527.75
