| Performance |
|---|
| Number of languages | 12 |
| Languages support | English, Polish, Spanish, Italian, Portuguese, Japanese, Russian, Simplified Chinese, French, Korean, Traditional Chinese, German |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Certification | CISPR 24, CISPR 35, EN 50121-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR32 Class A, VCCI Class A, IEC/EN/UL 60950-22, IEC/EN/UL 62368–1, IEC 60068-2-1, IEC/EN 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10b , ISO 21207 Method B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7–2.2.9), NIST SP500-267 |
| Design |
|---|
| IK code | IK10 |
| Form factor | Bullet |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera |
|---|
| Camera pixel size | 17 µm |
| Lens viewing angle, horizontal | 19.4° |
| Image sensor |
|---|
| Sensor type | Microbolometer |
| Effective sensor resolution (thermal module) | 384 x 288 pixels |
| Number of sensors | 1 |
| Lens system |
|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.23 |
| Closest focusing distance | 8.5 m |
| Fixed focal length | 1.9 cm |
| Infrared spectral band | 8 - 14 µm |
| Video |
|---|
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Maximum resolution | 768 x 576 pixels |
| Video formats supported | H.264, H.265, AVC, MPEG4, HEVC, M-JPEG |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Audio |
|---|
| Sample rate | 8 kHz |
| Audio formats supported | G.711, G.726, AAC-LC, LPCM, ADPCM, PCM |
| Audio detection | Yes |
| Network |
|---|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Storage |
|---|
| ROM capacity | 1024 MB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Ports & interfaces |
|---|
| Terminal block port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security |
|---|
| Alert notification type | E-mail |
| Video motion detection | Yes |
| Security algorithms | EAP-TLS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Power |
|---|
| Power source type | DC, PoE |
| Power consumption (max) | 12.95 W |
| Power consumption (typical) | 4.96 W |
| DC output voltage | 12, 28 |
| Certificates |
|---|
| Certification | CISPR 24, CISPR 35, EN 50121-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR32 Class A, VCCI Class A, IEC/EN/UL 60950-22, IEC/EN/UL 62368–1, IEC 60068-2-1, IEC/EN 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10b , ISO 21207 Method B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7–2.2.9), NIST SP500-267 |
| Operational conditions |
|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions |
|---|
| Width | 132 mm |
| Depth | 272 mm |
| Height | 132 mm |
| Weight | 1.4 kg |
| Packaging content |
|---|
| Number of cameras | 1 |
| Mounting brackets included | Yes |
| Manual | Yes |
| Technical details |
|---|
| Doesn't contain | PVC, BFR, Halogen |
| Other features |
|---|
| Doesn't contain | PVC, BFR, Halogen |
| Logistics data |
|---|
| Harmonized System (HS) code | 85258900 |

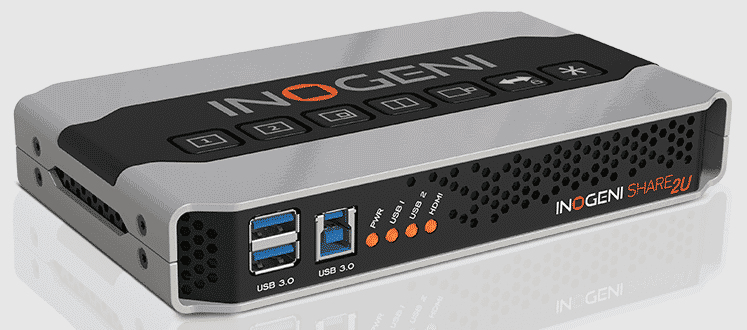

INOGENI SHARE2U video signal converter Active video converter 1920 x 1080 pixels£1,855.58RRP £2,551.42
