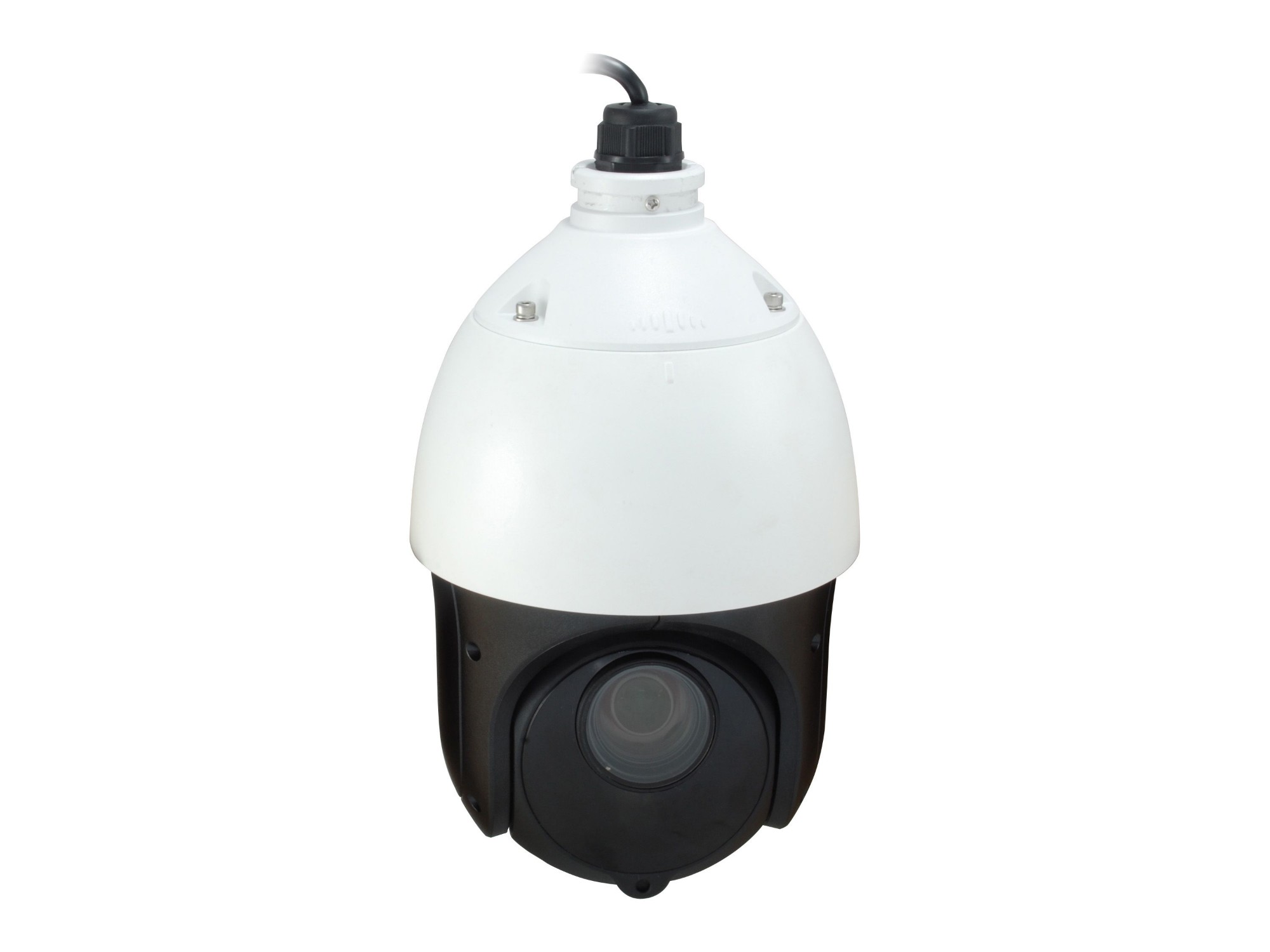

Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
PTZ control | Yes |
Placement supported | Indoor & outdoor |
Day/night mode | Yes |
Certification | CE/FCC |
Design | |
Weatherproof | Yes |
Country of origin | China |
Form factor | Dome |
Product colour | Black, White |
Mounting type | Ceiling |
LED indicators | Power |
International Protection (IP) code | IP66 |
Camera | |
Tilt preset speed | 80 °/sec |
Auto flip | Yes |
Minimum illumination | 0.01 lx |
Field of view (FOV) angle | 58.3° |
Tilt angle range | -15 - 90° |
Pan range | 0 - 360° |
Pan speed | 80 °/sec |
Camera shutter speed | 1 - 1/10000 s |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system | |
Number of lenses | 1 |
Maximum aperture number | 3.5 |
Minimum aperture number | 1.6 |
Optical zoom | 20x |
Focal length range | 4.7 - 94 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 50 m |
LED type | IR |
Video | |
Full HD | Yes |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Privacy masking | Yes |
Digital Wide Dynamic Range (DWDR) | Yes |
Video compression formats | H.264, M-JPEG |
Maximum resolution | 1920 x 1080 pixels |
Video formats supported | AVI |
Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
Frame rate | 60 fps |
Total megapixels | 2 MP |
Audio | |
Audio input channels | 1 channels |
Audio output channels | 1 channels |
Audio codecs | G.711/G.722/G.726/MP2L2 |
Network | |
Bluetooth | No |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.3at |
Quality of Service (QoS) support | Yes |
Number of users | 16 user(s) |
Ethernet LAN | Yes |
Cabling technology | 10/100Base-T(X) |
Wi-Fi | No |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
Storage | |
Maximum memory card size | 128 GB |
Card reader integrated | Yes |
Built-in HDD | No |
Compatible memory cards | SD, SDHC, SDXC |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Interface | RJ-45 |
Connectivity technology | Wired |
Security | |
IP address filtering | Yes |
Password protection | Yes |
Mirror | Yes |
Heartbeat | Yes |
Digital watermark | Yes |
Anti-flicker | Yes |
Management features | |
Web browser | Yes |
Reset button | Yes |
Power | |
Power source type | DC, PoE |
Power consumption (Power over Ethernet (PoE)) | 20 W |
Power over Ethernet (PoE) | Yes |
DC-in jack | Yes |
DC output voltage | 12 |
Certificates | |
Certification | CE/FCC |
Operational conditions | |
Operating temperature (T-T) | -30 - 65 °C |
Operating relative humidity (H-H) | 0 - 90% |
System requirements | |
Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
Weight & dimensions | |
Package type | Box |
Width | 295 mm |
Diameter | 16.4 cm |
Weight | 2 kg |
Package width | 218 mm |
Package height | 218 mm |
Package depth | 384 mm |
Package weight | 2.2 kg |
Packaging data | |
Package type | Box |
Package width | 218 mm |
Package height | 218 mm |
Package depth | 384 mm |
Package weight | 2.2 kg |
Packaging content | |
Number of cameras | 1 |
Quick installation guide | Yes |
Package type | Box |
Resource CD | Yes |
Technical details | |
Pallet net width | 120 cm |
Pallet net height | 140 cm |
Pallet net length | 80 cm |
Other features | |
Video compression formats | H.264, M-JPEG |
Browser supported | Internet Explorer 9+ |
Data transfer rate | 16 Mbit/s |
Audio codecs | G.711/G.722/G.726/MP2L2 |
Logistics data | |
Master (outer) case width | 460 mm |
Master (outer) case length | 405 mm |
Master (outer) case height | 460 mm |
Master (outer) case gross weight | 9.5 kg |
Products per master (outer) case | 4 pc(s) |
Harmonized System (HS) code | 85258900 |
Pallet net width | 120 cm |
Pallet net height | 140 cm |
Pallet net length | 80 cm |
Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
PTZ control | Yes |
Placement supported | Indoor & outdoor |
Day/night mode | Yes |
Certification | CE/FCC |
Design | |
Weatherproof | Yes |
Country of origin | China |
Form factor | Dome |
Product colour | Black, White |
Mounting type | Ceiling |
LED indicators | Power |
International Protection (IP) code | IP66 |
Camera | |
Tilt preset speed | 80 °/sec |
Auto flip | Yes |
Minimum illumination | 0.01 lx |
Field of view (FOV) angle | 58.3° |
Tilt angle range | -15 - 90° |
Pan range | 0 - 360° |
Pan speed | 80 °/sec |
Camera shutter speed | 1 - 1/10000 s |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system | |
Number of lenses | 1 |
Maximum aperture number | 3.5 |
Minimum aperture number | 1.6 |
Optical zoom | 20x |
Focal length range | 4.7 - 94 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 50 m |
LED type | IR |
Video | |
Full HD | Yes |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Privacy masking | Yes |
Digital Wide Dynamic Range (DWDR) | Yes |
Video compression formats | H.264, M-JPEG |
Maximum resolution | 1920 x 1080 pixels |
Video formats supported | AVI |
Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
Frame rate | 60 fps |
Total megapixels | 2 MP |
Audio | |
Audio input channels | 1 channels |
Audio output channels | 1 channels |
Audio codecs | G.711/G.722/G.726/MP2L2 |
Network | |
Bluetooth | No |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.3at |
Quality of Service (QoS) support | Yes |
Number of users | 16 user(s) |
Ethernet LAN | Yes |
Cabling technology | 10/100Base-T(X) |
Wi-Fi | No |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
Storage | |
Maximum memory card size | 128 GB |
Card reader integrated | Yes |
Built-in HDD | No |
Compatible memory cards | SD, SDHC, SDXC |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Interface | RJ-45 |
Connectivity technology | Wired |
Security | |
IP address filtering | Yes |
Password protection | Yes |
Mirror | Yes |
Heartbeat | Yes |
Digital watermark | Yes |
Anti-flicker | Yes |
Management features | |
Web browser | Yes |
Reset button | Yes |
Power | |
Power source type | DC, PoE |
Power consumption (Power over Ethernet (PoE)) | 20 W |
Power over Ethernet (PoE) | Yes |
DC-in jack | Yes |
DC output voltage | 12 |
Certificates | |
Certification | CE/FCC |
Operational conditions | |
Operating temperature (T-T) | -30 - 65 °C |
Operating relative humidity (H-H) | 0 - 90% |
System requirements | |
Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
Weight & dimensions | |
Package type | Box |
Width | 295 mm |
Diameter | 16.4 cm |
Weight | 2 kg |
Package width | 218 mm |
Package height | 218 mm |
Package depth | 384 mm |
Package weight | 2.2 kg |
Packaging data | |
Package type | Box |
Package width | 218 mm |
Package height | 218 mm |
Package depth | 384 mm |
Package weight | 2.2 kg |
Packaging content | |
Number of cameras | 1 |
Quick installation guide | Yes |
Package type | Box |
Resource CD | Yes |
Technical details | |
Pallet net width | 120 cm |
Pallet net height | 140 cm |
Pallet net length | 80 cm |
Other features | |
Video compression formats | H.264, M-JPEG |
Browser supported | Internet Explorer 9+ |
Data transfer rate | 16 Mbit/s |
Audio codecs | G.711/G.722/G.726/MP2L2 |
Logistics data | |
Master (outer) case width | 460 mm |
Master (outer) case length | 405 mm |
Master (outer) case height | 460 mm |
Master (outer) case gross weight | 9.5 kg |
Products per master (outer) case | 4 pc(s) |
Harmonized System (HS) code | 85258900 |
Pallet net width | 120 cm |
Pallet net height | 140 cm |
Pallet net length | 80 cm |
Save £291.54
Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
Placement supported | Indoor & outdoor |
Day/night mode | Yes |
Certification | CE/FCC |
Design | |
Country of origin | China |
IK code | IK10 |
Form factor | Dome |
Product colour | White |
Mounting type | Ceiling/wall |
Protection features | Vandal proof |
LED indicators | Power |
International Protection (IP) code | IP66 |
Camera | |
Minimum illumination | 0.014 lx |
Field of view (FOV) angle | 112° |
Camera shutter speed | 1/3 - 1/10000 s |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system | |
Number of lenses | 1 |
Optical zoom | 4.3x |
Focus adjustment | 1.4 |
Focal length range | 2.8 - 12 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 30 m |
LED type | IR |
Video | |
Full HD | Yes |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Privacy masking | Yes |
Video compression formats | H.264, M-JPEG |
Maximum resolution | 1920 x 1080 pixels |
Video formats supported | AVI |
Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
Frame rate | 30 fps |
Total megapixels | 2 MP |
Audio | |
Voice codecs | MP2L2, G.711, G.722.1, G.726 |
Audio input channels | 1 channels |
Audio output channels | 1 channels |
Audio system | 2-way |
Audio formats supported | G.711, G.726 |
Network | |
Bluetooth | No |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.3af |
Quality of Service (QoS) support | Yes |
Number of users | 16 user(s) |
Ethernet LAN | Yes |
Cabling technology | 10/100Base-T(X) |
Wi-Fi | No |
Supported network protocols | TCP/IP (IPv4), UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
Storage | |
Maximum memory card size | 128 GB |
Card reader integrated | Yes |
Built-in HDD | No |
Compatible memory cards | SD, SDHC, SDXC |
Ports & interfaces | |
Terminal block port | Yes |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Interface | RJ-45 |
Connectivity technology | Wired |
Security | |
IP address filtering | Yes |
HTTPS encryption | Yes |
Password protection | Yes |
Mirror | Yes |
Heartbeat | Yes |
Digital watermark | Yes |
Anti-flicker | Yes |
Management features | |
Web browser | Yes |
Reset button | Yes |
Power | |
Power source type | PoE |
Power consumption (max) | 5.5 W |
Power over Ethernet (PoE) | Yes |
DC-in jack | Yes |
DC output voltage | 12 |
Certificates | |
Certification | CE/FCC |
Operational conditions | |
Operating temperature (T-T) | -30 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
System requirements | |
Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Weight & dimensions | |
Package type | Box |
Width | 133.1 mm |
Depth | 153.4 mm |
Height | 153.4 mm |
Weight | 1.29 kg |
Package width | 174 mm |
Package height | 244 mm |
Package depth | 173 mm |
Package weight | 1.82 kg |
Packaging content | |
Number of cameras | 1 |
Screws included | Yes |
Package type | Box |
Resource CD | Yes |
Technical details | |
Compliance certificates | RoHS |
Other features | |
Video compression formats | H.264, M-JPEG |
Browser supported | Internet Explorer 9 |
Data transfer rate | 16 Mbit/s |
Logistics data | |
Master (outer) case width | 365 mm |
Master (outer) case length | 372 mm |
Master (outer) case height | 504 mm |
Master (outer) case gross weight | 14.6 kg |
Products per master (outer) case | 8 pc(s) |
Harmonized System (HS) code | 85258900 |
Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
Placement supported | Indoor & outdoor |
Day/night mode | Yes |
Certification | CE/FCC |
Design | |
Country of origin | China |
IK code | IK10 |
Form factor | Dome |
Product colour | White |
Mounting type | Ceiling/wall |
Protection features | Vandal proof |
LED indicators | Power |
International Protection (IP) code | IP66 |
Camera | |
Minimum illumination | 0.014 lx |
Field of view (FOV) angle | 112° |
Camera shutter speed | 1/3 - 1/10000 s |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system | |
Number of lenses | 1 |
Optical zoom | 4.3x |
Focus adjustment | 1.4 |
Focal length range | 2.8 - 12 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 30 m |
LED type | IR |
Video | |
Full HD | Yes |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Privacy masking | Yes |
Video compression formats | H.264, M-JPEG |
Maximum resolution | 1920 x 1080 pixels |
Video formats supported | AVI |
Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
Frame rate | 30 fps |
Total megapixels | 2 MP |
Audio | |
Voice codecs | MP2L2, G.711, G.722.1, G.726 |
Audio input channels | 1 channels |
Audio output channels | 1 channels |
Audio system | 2-way |
Audio formats supported | G.711, G.726 |
Network | |
Bluetooth | No |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.3af |
Quality of Service (QoS) support | Yes |
Number of users | 16 user(s) |
Ethernet LAN | Yes |
Cabling technology | 10/100Base-T(X) |
Wi-Fi | No |
Supported network protocols | TCP/IP (IPv4), UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
Storage | |
Maximum memory card size | 128 GB |
Card reader integrated | Yes |
Built-in HDD | No |
Compatible memory cards | SD, SDHC, SDXC |
Ports & interfaces | |
Terminal block port | Yes |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Interface | RJ-45 |
Connectivity technology | Wired |
Security | |
IP address filtering | Yes |
HTTPS encryption | Yes |
Password protection | Yes |
Mirror | Yes |
Heartbeat | Yes |
Digital watermark | Yes |
Anti-flicker | Yes |
Management features | |
Web browser | Yes |
Reset button | Yes |
Power | |
Power source type | PoE |
Power consumption (max) | 5.5 W |
Power over Ethernet (PoE) | Yes |
DC-in jack | Yes |
DC output voltage | 12 |
Certificates | |
Certification | CE/FCC |
Operational conditions | |
Operating temperature (T-T) | -30 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
System requirements | |
Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Weight & dimensions | |
Package type | Box |
Width | 133.1 mm |
Depth | 153.4 mm |
Height | 153.4 mm |
Weight | 1.29 kg |
Package width | 174 mm |
Package height | 244 mm |
Package depth | 173 mm |
Package weight | 1.82 kg |
Packaging content | |
Number of cameras | 1 |
Screws included | Yes |
Package type | Box |
Resource CD | Yes |
Technical details | |
Compliance certificates | RoHS |
Other features | |
Video compression formats | H.264, M-JPEG |
Browser supported | Internet Explorer 9 |
Data transfer rate | 16 Mbit/s |
Logistics data | |
Master (outer) case width | 365 mm |
Master (outer) case length | 372 mm |
Master (outer) case height | 504 mm |
Master (outer) case gross weight | 14.6 kg |
Products per master (outer) case | 8 pc(s) |
Harmonized System (HS) code | 85258900 |
Save £94.55
Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
Placement supported | Indoor & outdoor |
Dynamic range | 120 dB |
Design | |
Weatherproof | Yes |
Country of origin | China |
IK code | IK10 |
Form factor | Dome |
Product colour | White |
Mounting type | Ceiling |
Protection features | Vandal proof |
LED indicators | Power |
International Protection (IP) code | IP67 |
Camera | |
Field of view (FOV) angle | 79° |
Camera shutter speed | 1/3 - 1/10000 s |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
Lens system | |
Number of lenses | 1 |
Maximum aperture number | 2 |
Zoom capability | Yes |
Lens diameter | 4 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 30 m |
LED type | IR |
Video | |
Noise reduction | Yes |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Digital Wide Dynamic Range (DWDR) | Yes |
Noise reduction technology | 3D noise reduction |
Video compression formats | H.264, H.265, M-JPEG |
Maximum resolution | 3840 x 2160 pixels |
Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2560 x 1920, 3840 x 2160 |
Frame rate | 30 fps |
Total megapixels | 8 MP |
Audio | |
Voice codecs | G.711, G.722.1, G.726, MP2L2 |
Audio system | 2-way |
Network | |
Bluetooth | No |
Networking standards | IEEE 802.3af |
Quality of Service (QoS) support | Yes |
Ethernet LAN | Yes |
Wi-Fi | No |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
Storage | |
Maximum memory card size | 128 GB |
Built-in HDD | No |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Ports & interfaces | |
Terminal block port | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Connectivity technology | Wired |
Management features | |
Web-based management | Yes |
Power | |
Power source type | DC, PoE |
Power consumption (max) | 9 W |
Power consumption (typical) | 6.2 W |
Operational conditions | |
Operating temperature (T-T) | -30 - 60 °C |
Storage temperature (T-T) | 0 - 95 °C |
Weight & dimensions | |
Package type | Box |
Width | 111 mm |
Depth | 111 mm |
Height | 82 mm |
Weight | 500 g |
Package width | 134 mm |
Package height | 108 mm |
Package depth | 134 mm |
Packaging content | |
Number of cameras | 1 |
Screws included | Yes |
Package type | Box |
Resource CD | Yes |
Manual | Yes |
Technical details | |
Pallet gross width | 120 cm |
Pallet gross length | 80 cm |
Pallet height (air) | 162 cm |
Master (outer) cases per pallet (air) | 20 pc(s) |
Sustainability compliance | Yes |
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, WEEE |
Other features | |
Video compression formats | H.264, H.265, M-JPEG |
Logistics data | |
Master (outer) case width | 345 mm |
Master (outer) case length | 590 mm |
Master (outer) case height | 568 mm |
Master (outer) case gross weight | 17 kg |
Products per master (outer) case | 24 pc(s) |
Harmonized System (HS) code | 8525890000 |
Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
Placement supported | Indoor & outdoor |
Dynamic range | 120 dB |
Design | |
Weatherproof | Yes |
Country of origin | China |
IK code | IK10 |
Form factor | Dome |
Product colour | White |
Mounting type | Ceiling |
Protection features | Vandal proof |
LED indicators | Power |
International Protection (IP) code | IP67 |
Camera | |
Field of view (FOV) angle | 79° |
Camera shutter speed | 1/3 - 1/10000 s |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
Lens system | |
Number of lenses | 1 |
Maximum aperture number | 2 |
Zoom capability | Yes |
Lens diameter | 4 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 30 m |
LED type | IR |
Video | |
Noise reduction | Yes |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Digital Wide Dynamic Range (DWDR) | Yes |
Noise reduction technology | 3D noise reduction |
Video compression formats | H.264, H.265, M-JPEG |
Maximum resolution | 3840 x 2160 pixels |
Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2560 x 1920, 3840 x 2160 |
Frame rate | 30 fps |
Total megapixels | 8 MP |
Audio | |
Voice codecs | G.711, G.722.1, G.726, MP2L2 |
Audio system | 2-way |
Network | |
Bluetooth | No |
Networking standards | IEEE 802.3af |
Quality of Service (QoS) support | Yes |
Ethernet LAN | Yes |
Wi-Fi | No |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
Storage | |
Maximum memory card size | 128 GB |
Built-in HDD | No |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Ports & interfaces | |
Terminal block port | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Connectivity technology | Wired |
Management features | |
Web-based management | Yes |
Power | |
Power source type | DC, PoE |
Power consumption (max) | 9 W |
Power consumption (typical) | 6.2 W |
Operational conditions | |
Operating temperature (T-T) | -30 - 60 °C |
Storage temperature (T-T) | 0 - 95 °C |
Weight & dimensions | |
Package type | Box |
Width | 111 mm |
Depth | 111 mm |
Height | 82 mm |
Weight | 500 g |
Package width | 134 mm |
Package height | 108 mm |
Package depth | 134 mm |
Packaging content | |
Number of cameras | 1 |
Screws included | Yes |
Package type | Box |
Resource CD | Yes |
Manual | Yes |
Technical details | |
Pallet gross width | 120 cm |
Pallet gross length | 80 cm |
Pallet height (air) | 162 cm |
Master (outer) cases per pallet (air) | 20 pc(s) |
Sustainability compliance | Yes |
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, WEEE |
Other features | |
Video compression formats | H.264, H.265, M-JPEG |
Logistics data | |
Master (outer) case width | 345 mm |
Master (outer) case length | 590 mm |
Master (outer) case height | 568 mm |
Master (outer) case gross weight | 17 kg |
Products per master (outer) case | 24 pc(s) |
Harmonized System (HS) code | 8525890000 |
Save £170.62
Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
Placement supported | Indoor & outdoor |
Design | |
Weatherproof | Yes |
Country of origin | China |
IK code | IK10 |
Form factor | Dome |
Product colour | White |
Mounting type | Ceiling |
LED indicators | Power |
International Protection (IP) code | IP67 |
Camera | |
Camera shutter speed | 1/3 - 1/100000 s |
Lens viewing angle, horizontal | 35 - 115° |
Lens viewing angle, vertical | 19 - 60° |
Lens viewing angle, diagonal | 38.5 - 146° |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
Lens system | |
Maximum aperture number | 2 |
Zoom capability | Yes |
Optical zoom | 4.3x |
Focal length range | 2.8 - 12 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 30 m |
Video | |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Digital Wide Dynamic Range (DWDR) | Yes |
Video compression formats | H.264, H.265 |
Maximum resolution | 3840 x 2160 pixels |
Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2944 x 1656, 3840 x 2160 |
Total megapixels | 8 MP |
Audio | |
Voice codecs | G.711a, G.711u, G.722.1, G.726, MP2L2 |
Audio system | 2-way |
Network | |
Bluetooth | No |
Networking standards | IEEE 802.3af |
Quality of Service (QoS) support | Yes |
Ethernet LAN | Yes |
Wi-Fi | No |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6 |
Storage | |
Maximum memory card size | 128 GB |
Card reader integrated | Yes |
Built-in HDD | No |
Compatible memory cards | MicroSDHC, MicroSDXC |
Ports & interfaces | |
Terminal block port | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Connectivity technology | Wired |
Security | |
Alert notification type | E-mail, Snapshot alert message, Text alert message |
Intelligent Video Surveillance (IVS) system features | Abandoned object, Crossing line, Face detection, Intrusion, Missing object, Scene change |
Video motion detection | Yes |
Security algorithms | EAP-LEAP, EAP-MD5, EAP-TLS, HTTPS, TLS |
IP address filtering | Yes |
Active tampering alarm | Yes |
Password protection | Yes |
Digital watermark | Yes |
Management features | |
Web-based management | Yes |
Power | |
Power source type | DC, PoE |
Power consumption (max) | 12.9 W |
Power consumption (typical) | 11.5 W |
DC output voltage | 12 |
Operational conditions | |
Operating temperature (T-T) | -30 - 60 °C |
Storage temperature (T-T) | 0 - 95 °C |
Weight & dimensions | |
Package type | Box |
Width | 133.1 mm |
Depth | 153.4 mm |
Height | 153.4 mm |
Weight | 1.29 kg |
Package width | 174 mm |
Package height | 244 mm |
Package depth | 173 mm |
Package weight | 1.42 kg |
Packaging content | |
Number of cameras | 1 |
Screws included | Yes |
Package type | Box |
Technical details | |
Pallet gross width | 120 cm |
Pallet gross length | 80 cm |
Pallet height (air) | 152 cm |
Master (outer) cases per pallet (air) | 18 pc(s) |
Sustainability compliance | Yes |
Other features | |
Video compression formats | H.264, H.265 |
Logistics data | |
Master (outer) case width | 365 mm |
Master (outer) case length | 372 mm |
Master (outer) case height | 504 mm |
Master (outer) case gross weight | 15 kg |
Products per master (outer) case | 12 pc(s) |
Harmonized System (HS) code | 8525890000 |
Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
Placement supported | Indoor & outdoor |
Design | |
Weatherproof | Yes |
Country of origin | China |
IK code | IK10 |
Form factor | Dome |
Product colour | White |
Mounting type | Ceiling |
LED indicators | Power |
International Protection (IP) code | IP67 |
Camera | |
Camera shutter speed | 1/3 - 1/100000 s |
Lens viewing angle, horizontal | 35 - 115° |
Lens viewing angle, vertical | 19 - 60° |
Lens viewing angle, diagonal | 38.5 - 146° |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
Lens system | |
Maximum aperture number | 2 |
Zoom capability | Yes |
Optical zoom | 4.3x |
Focal length range | 2.8 - 12 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 30 m |
Video | |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Digital Wide Dynamic Range (DWDR) | Yes |
Video compression formats | H.264, H.265 |
Maximum resolution | 3840 x 2160 pixels |
Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2944 x 1656, 3840 x 2160 |
Total megapixels | 8 MP |
Audio | |
Voice codecs | G.711a, G.711u, G.722.1, G.726, MP2L2 |
Audio system | 2-way |
Network | |
Bluetooth | No |
Networking standards | IEEE 802.3af |
Quality of Service (QoS) support | Yes |
Ethernet LAN | Yes |
Wi-Fi | No |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6 |
Storage | |
Maximum memory card size | 128 GB |
Card reader integrated | Yes |
Built-in HDD | No |
Compatible memory cards | MicroSDHC, MicroSDXC |
Ports & interfaces | |
Terminal block port | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Connectivity technology | Wired |
Security | |
Alert notification type | E-mail, Snapshot alert message, Text alert message |
Intelligent Video Surveillance (IVS) system features | Abandoned object, Crossing line, Face detection, Intrusion, Missing object, Scene change |
Video motion detection | Yes |
Security algorithms | EAP-LEAP, EAP-MD5, EAP-TLS, HTTPS, TLS |
IP address filtering | Yes |
Active tampering alarm | Yes |
Password protection | Yes |
Digital watermark | Yes |
Management features | |
Web-based management | Yes |
Power | |
Power source type | DC, PoE |
Power consumption (max) | 12.9 W |
Power consumption (typical) | 11.5 W |
DC output voltage | 12 |
Operational conditions | |
Operating temperature (T-T) | -30 - 60 °C |
Storage temperature (T-T) | 0 - 95 °C |
Weight & dimensions | |
Package type | Box |
Width | 133.1 mm |
Depth | 153.4 mm |
Height | 153.4 mm |
Weight | 1.29 kg |
Package width | 174 mm |
Package height | 244 mm |
Package depth | 173 mm |
Package weight | 1.42 kg |
Packaging content | |
Number of cameras | 1 |
Screws included | Yes |
Package type | Box |
Technical details | |
Pallet gross width | 120 cm |
Pallet gross length | 80 cm |
Pallet height (air) | 152 cm |
Master (outer) cases per pallet (air) | 18 pc(s) |
Sustainability compliance | Yes |
Other features | |
Video compression formats | H.264, H.265 |
Logistics data | |
Master (outer) case width | 365 mm |
Master (outer) case length | 372 mm |
Master (outer) case height | 504 mm |
Master (outer) case gross weight | 15 kg |
Products per master (outer) case | 12 pc(s) |
Harmonized System (HS) code | 8525890000 |
Save £299.85
Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
PTZ control | Yes |
Placement supported | Indoor & outdoor |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Alarm input/output | Yes |
Certification | CE/FCC |
Design | |
Country of origin | China |
IK code | IK10 |
Form factor | Bullet |
Product colour | White |
Mounting type | Ceiling/wall |
Protection features | Dust resistant, Water resistant |
LED indicators | Power |
International Protection (IP) code | IP67 |
Camera | |
Minimum illumination | 0.005 lx |
White balance | Auto |
Camera shutter speed | 1/3 - 1/100000 s |
Lens viewing angle, horizontal | 105° |
Lens viewing angle, vertical | 56° |
Lens viewing angle, diagonal | 126° |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system | |
Number of lenses | 1 |
Zoom capability | Yes |
Optical zoom | 4.3x |
Focal length range | 2.8 - 12 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 50 m |
LED type | IR |
Video | |
Full HD | Yes |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Privacy masking | Yes |
Back Light Compensation (BLC) | Yes |
3D NR (Noise Reduction) | Yes |
Video compression formats | H.264, H.265, M-JPEG |
Maximum resolution | 1920 x 1080 pixels |
Video formats supported | AVI |
Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
Supported video modes | 240p, 360p, 480p, 720p, 960p, 1080p |
Frame rate | 60 fps |
Total megapixels | 2 MP |
Audio | |
Audio input channels | 1 channels |
Audio output channels | 1 channels |
Audio codecs | G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
Network | |
Bluetooth | No |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.3at |
Quality of Service (QoS) support | Yes |
Number of users | 32 user(s) |
Ethernet LAN | Yes |
Cabling technology | 10/100Base-T(X) |
Wi-Fi | No |
Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour |
Storage | |
Maximum memory card size | 128 GB |
Card reader integrated | Yes |
Built-in HDD | No |
Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
Ports & interfaces | |
Terminal block port | Yes |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Composite video out | 1 |
Interface | RJ-45 |
Connectivity technology | Wired |
Security | |
Intelligent Video Surveillance (IVS) system features | Face detection |
Video motion detection | Yes |
Password protection | Yes |
Mirror | Yes |
Heartbeat | Yes |
Digital watermark | Yes |
Anti-flicker | Yes |
Management features | |
Reset button | Yes |
Behavior analysis | Intrusion detection, Line crossing detection |
Power | |
Power source type | DC, PoE |
Power consumption (max) | 15.5 W |
Power consumption (Power over Ethernet (PoE)) | 17.5 W |
DC-in jack | Yes |
DC output voltage | 12 |
DC output current | 1.3 A |
Certificates | |
Certification | CE/FCC |
Operational conditions | |
Operating temperature (T-T) | -30 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
Package type | Box |
Width | 332.7 mm |
Depth | 332.7 mm |
Height | 144.1 mm |
Weight | 1.89 kg |
Package width | 185 mm |
Package height | 385 mm |
Package depth | 200 mm |
Package weight | 2.28 kg |
Packaging data | |
Package type | Box |
Package width | 185 mm |
Package height | 385 mm |
Package depth | 200 mm |
Package weight | 2.28 kg |
Packaging content | |
Number of cameras | 1 |
Screws included | Yes |
Package type | Box |
Resource CD | Yes |
Other features | |
Video compression formats | H.264, H.265, M-JPEG |
Browser supported | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
Audio codecs | G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
Logistics data | |
Master (outer) case width | 570 mm |
Master (outer) case length | 410 mm |
Master (outer) case height | 595 mm |
Master (outer) case gross weight | 15.5 kg |
Products per master (outer) case | 9 pc(s) |
Harmonized System (HS) code | 85258900 |
Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
PTZ control | Yes |
Placement supported | Indoor & outdoor |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Alarm input/output | Yes |
Certification | CE/FCC |
Design | |
Country of origin | China |
IK code | IK10 |
Form factor | Bullet |
Product colour | White |
Mounting type | Ceiling/wall |
Protection features | Dust resistant, Water resistant |
LED indicators | Power |
International Protection (IP) code | IP67 |
Camera | |
Minimum illumination | 0.005 lx |
White balance | Auto |
Camera shutter speed | 1/3 - 1/100000 s |
Lens viewing angle, horizontal | 105° |
Lens viewing angle, vertical | 56° |
Lens viewing angle, diagonal | 126° |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system | |
Number of lenses | 1 |
Zoom capability | Yes |
Optical zoom | 4.3x |
Focal length range | 2.8 - 12 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 50 m |
LED type | IR |
Video | |
Full HD | Yes |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Privacy masking | Yes |
Back Light Compensation (BLC) | Yes |
3D NR (Noise Reduction) | Yes |
Video compression formats | H.264, H.265, M-JPEG |
Maximum resolution | 1920 x 1080 pixels |
Video formats supported | AVI |
Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
Supported video modes | 240p, 360p, 480p, 720p, 960p, 1080p |
Frame rate | 60 fps |
Total megapixels | 2 MP |
Audio | |
Audio input channels | 1 channels |
Audio output channels | 1 channels |
Audio codecs | G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
Network | |
Bluetooth | No |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.3at |
Quality of Service (QoS) support | Yes |
Number of users | 32 user(s) |
Ethernet LAN | Yes |
Cabling technology | 10/100Base-T(X) |
Wi-Fi | No |
Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour |
Storage | |
Maximum memory card size | 128 GB |
Card reader integrated | Yes |
Built-in HDD | No |
Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
Ports & interfaces | |
Terminal block port | Yes |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Composite video out | 1 |
Interface | RJ-45 |
Connectivity technology | Wired |
Security | |
Intelligent Video Surveillance (IVS) system features | Face detection |
Video motion detection | Yes |
Password protection | Yes |
Mirror | Yes |
Heartbeat | Yes |
Digital watermark | Yes |
Anti-flicker | Yes |
Management features | |
Reset button | Yes |
Behavior analysis | Intrusion detection, Line crossing detection |
Power | |
Power source type | DC, PoE |
Power consumption (max) | 15.5 W |
Power consumption (Power over Ethernet (PoE)) | 17.5 W |
DC-in jack | Yes |
DC output voltage | 12 |
DC output current | 1.3 A |
Certificates | |
Certification | CE/FCC |
Operational conditions | |
Operating temperature (T-T) | -30 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
Package type | Box |
Width | 332.7 mm |
Depth | 332.7 mm |
Height | 144.1 mm |
Weight | 1.89 kg |
Package width | 185 mm |
Package height | 385 mm |
Package depth | 200 mm |
Package weight | 2.28 kg |
Packaging data | |
Package type | Box |
Package width | 185 mm |
Package height | 385 mm |
Package depth | 200 mm |
Package weight | 2.28 kg |
Packaging content | |
Number of cameras | 1 |
Screws included | Yes |
Package type | Box |
Resource CD | Yes |
Other features | |
Video compression formats | H.264, H.265, M-JPEG |
Browser supported | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
Audio codecs | G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
Logistics data | |
Master (outer) case width | 570 mm |
Master (outer) case length | 410 mm |
Master (outer) case height | 595 mm |
Master (outer) case gross weight | 15.5 kg |
Products per master (outer) case | 9 pc(s) |
Harmonized System (HS) code | 85258900 |
Save £113.44
Features | |
---|---|
Country of origin | China |
Brand compatibility | LevelOne |
Compatibility | FCS-3097 FCS-3098 FCS-4203 |
Type | Ceiling mounting foot |
Placement supported | Indoor |
Product colour | White |
Technical details | |
Country of origin | China |
Compatibility | FCS-3097 FCS-3098 FCS-4203 |
Type | Ceiling mounting foot |
Placement supported | Indoor |
Harmonized System (HS) code | 85299020 |
Weight & dimensions | |
Width | 150 mm |
Weight | 650 g |
Height | 150 mm |
Depth | 565 mm |
Package width | 155 mm |
Package height | 570 mm |
Package depth | 155 mm |
Package weight | 1 kg |
Colour | |
Product colour | White |
Packaging data | |
Package type | Box |
Package width | 155 mm |
Package height | 570 mm |
Package depth | 155 mm |
Package weight | 1 kg |
Packaging content | |
Package type | Box |
Logistics data | |
Master (outer) case width | 405 mm |
Master (outer) case length | 300 mm |
Master (outer) case height | 568 mm |
Master (outer) case gross weight | 5.9 kg |
Products per master (outer) case | 4 pc(s) |
Harmonized System (HS) code | 85299020 |
Features | |
---|---|
Country of origin | China |
Brand compatibility | LevelOne |
Compatibility | FCS-3097 FCS-3098 FCS-4203 |
Type | Ceiling mounting foot |
Placement supported | Indoor |
Product colour | White |
Technical details | |
Country of origin | China |
Compatibility | FCS-3097 FCS-3098 FCS-4203 |
Type | Ceiling mounting foot |
Placement supported | Indoor |
Harmonized System (HS) code | 85299020 |
Weight & dimensions | |
Width | 150 mm |
Weight | 650 g |
Height | 150 mm |
Depth | 565 mm |
Package width | 155 mm |
Package height | 570 mm |
Package depth | 155 mm |
Package weight | 1 kg |
Colour | |
Product colour | White |
Packaging data | |
Package type | Box |
Package width | 155 mm |
Package height | 570 mm |
Package depth | 155 mm |
Package weight | 1 kg |
Packaging content | |
Package type | Box |
Logistics data | |
Master (outer) case width | 405 mm |
Master (outer) case length | 300 mm |
Master (outer) case height | 568 mm |
Master (outer) case gross weight | 5.9 kg |
Products per master (outer) case | 4 pc(s) |
Harmonized System (HS) code | 85299020 |
Save £34.08
Features | |
---|---|
Country of origin | China |
Brand compatibility | LevelOne |
Compatibility | FCS-3097 FCS-3098 FCS-4203 FCS-5094 FCS-5095 FCS-5096 |
Type | Mount |
Placement supported | Indoor |
Product colour | White |
Technical details | |
Country of origin | China |
Compatibility | FCS-3097 FCS-3098 FCS-4203 FCS-5094 FCS-5095 FCS-5096 |
Type | Mount |
Placement supported | Indoor |
Harmonized System (HS) code | 85299020 |
Weight & dimensions | |
Width | 46 mm |
Weight | 1.2 kg |
Height | 127 mm |
Depth | 250 mm |
Package width | 134 mm |
Package height | 226 mm |
Package depth | 50 mm |
Package weight | 1.4 kg |
Colour | |
Product colour | White |
Packaging data | |
Package type | Box |
Package width | 134 mm |
Package height | 226 mm |
Package depth | 50 mm |
Package weight | 1.4 kg |
Packaging content | |
Package type | Box |
Logistics data | |
Master (outer) case width | 430 mm |
Master (outer) case length | 288 mm |
Master (outer) case height | 560 mm |
Master (outer) case gross weight | 8.4 kg |
Products per master (outer) case | 6 pc(s) |
Features | |
---|---|
Country of origin | China |
Brand compatibility | LevelOne |
Compatibility | FCS-3097 FCS-3098 FCS-4203 FCS-5094 FCS-5095 FCS-5096 |
Type | Mount |
Placement supported | Indoor |
Product colour | White |
Technical details | |
Country of origin | China |
Compatibility | FCS-3097 FCS-3098 FCS-4203 FCS-5094 FCS-5095 FCS-5096 |
Type | Mount |
Placement supported | Indoor |
Harmonized System (HS) code | 85299020 |
Weight & dimensions | |
Width | 46 mm |
Weight | 1.2 kg |
Height | 127 mm |
Depth | 250 mm |
Package width | 134 mm |
Package height | 226 mm |
Package depth | 50 mm |
Package weight | 1.4 kg |
Colour | |
Product colour | White |
Packaging data | |
Package type | Box |
Package width | 134 mm |
Package height | 226 mm |
Package depth | 50 mm |
Package weight | 1.4 kg |
Packaging content | |
Package type | Box |
Logistics data | |
Master (outer) case width | 430 mm |
Master (outer) case length | 288 mm |
Master (outer) case height | 560 mm |
Master (outer) case gross weight | 8.4 kg |
Products per master (outer) case | 6 pc(s) |
Save £33.21
Features | |
---|---|
Country of origin | China |
Brand compatibility | LevelOne |
Compatibility | FCS-3097 FCS-3098 FCS-4203 |
Type | Mount |
Placement supported | Indoor |
Product colour | White |
Wall mountable | Yes |
Ergonomics | |
Wall mountable | Yes |
Technical details | |
Country of origin | China |
Compatibility | FCS-3097 FCS-3098 FCS-4203 |
Type | Mount |
Placement supported | Indoor |
Harmonized System (HS) code | 85299020 |
Weight & dimensions | |
Width | 183.5 mm |
Weight | 650 g |
Height | 155 mm |
Depth | 240 mm |
Package width | 185 mm |
Package height | 158 mm |
Package depth | 250 mm |
Package weight | 820 g |
Colour | |
Product colour | White |
Packaging data | |
Package type | Box |
Package width | 185 mm |
Package height | 158 mm |
Package depth | 250 mm |
Package weight | 820 g |
Packaging content | |
Package type | Box |
Logistics data | |
Master (outer) case width | 320 mm |
Master (outer) case length | 590 mm |
Master (outer) case height | 253 mm |
Master (outer) case gross weight | 4.2 kg |
Products per master (outer) case | 6 pc(s) |
Harmonized System (HS) code | 85299020 |
Features | |
---|---|
Country of origin | China |
Brand compatibility | LevelOne |
Compatibility | FCS-3097 FCS-3098 FCS-4203 |
Type | Mount |
Placement supported | Indoor |
Product colour | White |
Wall mountable | Yes |
Ergonomics | |
Wall mountable | Yes |
Technical details | |
Country of origin | China |
Compatibility | FCS-3097 FCS-3098 FCS-4203 |
Type | Mount |
Placement supported | Indoor |
Harmonized System (HS) code | 85299020 |
Weight & dimensions | |
Width | 183.5 mm |
Weight | 650 g |
Height | 155 mm |
Depth | 240 mm |
Package width | 185 mm |
Package height | 158 mm |
Package depth | 250 mm |
Package weight | 820 g |
Colour | |
Product colour | White |
Packaging data | |
Package type | Box |
Package width | 185 mm |
Package height | 158 mm |
Package depth | 250 mm |
Package weight | 820 g |
Packaging content | |
Package type | Box |
Logistics data | |
Master (outer) case width | 320 mm |
Master (outer) case length | 590 mm |
Master (outer) case height | 253 mm |
Master (outer) case gross weight | 4.2 kg |
Products per master (outer) case | 6 pc(s) |
Harmonized System (HS) code | 85299020 |
Save £38.73
Features | |
---|---|
Country of origin | China |
Brand compatibility | LevelOne |
Compatibility | FCS-3097 FCS-3098 FCS-4203 FCS-5094 FCS-5095 FCS-5096 |
Type | Mount |
Placement supported | Indoor |
Product colour | White |
Wall mountable | Yes |
Ergonomics | |
Wall mountable | Yes |
Technical details | |
Country of origin | China |
Compatibility | FCS-3097 FCS-3098 FCS-4203 FCS-5094 FCS-5095 FCS-5096 |
Type | Mount |
Placement supported | Indoor |
Harmonized System (HS) code | 85299020 |
Weight & dimensions | |
Width | 105 mm |
Weight | 2.27 kg |
Height | 126 mm |
Depth | 250 mm |
Package width | 110 mm |
Package height | 155 mm |
Package depth | 253 mm |
Package weight | 2.71 kg |
Colour | |
Product colour | White |
Packaging data | |
Package type | Box |
Package width | 110 mm |
Package height | 155 mm |
Package depth | 253 mm |
Package weight | 2.71 kg |
Packaging content | |
Package type | Box |
Logistics data | |
Master (outer) case width | 320 mm |
Master (outer) case length | 481 mm |
Master (outer) case height | 568 mm |
Master (outer) case gross weight | 9.8 kg |
Products per master (outer) case | 4 pc(s) |
Harmonized System (HS) code | 85299020 |
Features | |
---|---|
Country of origin | China |
Brand compatibility | LevelOne |
Compatibility | FCS-3097 FCS-3098 FCS-4203 FCS-5094 FCS-5095 FCS-5096 |
Type | Mount |
Placement supported | Indoor |
Product colour | White |
Wall mountable | Yes |
Ergonomics | |
Wall mountable | Yes |
Technical details | |
Country of origin | China |
Compatibility | FCS-3097 FCS-3098 FCS-4203 FCS-5094 FCS-5095 FCS-5096 |
Type | Mount |
Placement supported | Indoor |
Harmonized System (HS) code | 85299020 |
Weight & dimensions | |
Width | 105 mm |
Weight | 2.27 kg |
Height | 126 mm |
Depth | 250 mm |
Package width | 110 mm |
Package height | 155 mm |
Package depth | 253 mm |
Package weight | 2.71 kg |
Colour | |
Product colour | White |
Packaging data | |
Package type | Box |
Package width | 110 mm |
Package height | 155 mm |
Package depth | 253 mm |
Package weight | 2.71 kg |
Packaging content | |
Package type | Box |
Logistics data | |
Master (outer) case width | 320 mm |
Master (outer) case length | 481 mm |
Master (outer) case height | 568 mm |
Master (outer) case gross weight | 9.8 kg |
Products per master (outer) case | 4 pc(s) |
Harmonized System (HS) code | 85299020 |
Save £39.84
Performance | |
---|---|
Video input channels | 64 channels |
Alarm input channels | 4 |
Alarm output channels | 16 |
Maximum resolution | 3840 x 2160 pixels |
Video formats supported | H.264, H.264+, H.265, MPEG4 |
Supported network protocols | TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP,RTSP, SNMP, FTP |
PTZ control | Yes |
Number of users | 128 user(s) |
On Screen Display (OSD) | Yes |
Operating system installed | Embedded LINUX |
Video recording modes | 720p, 1080p |
Output bandwidth | 256 Mbit/s |
Input bandwidth | 320 Mbit/s |
Wireless LAN features | |
Wi-Fi | No |
Hard drive | |
Number of HDDs supported | 8 |
Maximum storage capacity | 80 TB |
HDD size | 3.5" |
RAID support | Yes |
RAID levels | 0, 1, 5, 10 |
Storage | |
Number of HDDs supported | 8 |
Maximum storage capacity | 80 TB |
HDD size | 3.5" |
RAID support | Yes |
RAID levels | 0, 1, 5, 10 |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 2 |
RAID levels | 0, 1, 5, 10 |
VGA (D-Sub) output ports | 2 |
USB 2.0 ports quantity | 2 |
Supported network protocols | TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP,RTSP, SNMP, FTP |
RS-485 ports | 1 |
RS-232 interface | Yes |
eSATA | Yes |
Line-in | Yes |
Audio RCA outputs | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
HDMI ports quantity | 2 |
Features | |
Rack mounting | Yes |
LED indicators | Power |
Certification | CE,FCC,UL |
On/off switch | Yes |
Product colour | Black |
Power | |
AC input voltage | 100 - 240 V |
Power consumption (max) | 200 W |
Operational conditions | |
Operating temperature (T-T) | -10 - 55 °C |
Operating relative humidity (H-H) | 10 - 90% |
Technical details | |
Compliance certificates | RoHS |
Weight & dimensions | |
Width | 470 mm |
Depth | 90 mm |
Height | 445 mm |
Weight | 10 kg |
Package width | 510 mm |
Package depth | 110 mm |
Package height | 450 mm |
Package weight | 12 kg |
Package type | Box |
Packaging content | |
CD manual | Yes |
Cables included | AC |
Logistics data | |
Master (outer) case width | 520 mm |
Master (outer) case length | 180 mm |
Master (outer) case height | 510 mm |
Master (outer) case gross weight | 12.7 kg |
Products per master (outer) case | 1 pc(s) |
Performance | |
---|---|
Video input channels | 64 channels |
Alarm input channels | 4 |
Alarm output channels | 16 |
Maximum resolution | 3840 x 2160 pixels |
Video formats supported | H.264, H.264+, H.265, MPEG4 |
Supported network protocols | TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP,RTSP, SNMP, FTP |
PTZ control | Yes |
Number of users | 128 user(s) |
On Screen Display (OSD) | Yes |
Operating system installed | Embedded LINUX |
Video recording modes | 720p, 1080p |
Output bandwidth | 256 Mbit/s |
Input bandwidth | 320 Mbit/s |
Wireless LAN features | |
Wi-Fi | No |
Hard drive | |
Number of HDDs supported | 8 |
Maximum storage capacity | 80 TB |
HDD size | 3.5" |
RAID support | Yes |
RAID levels | 0, 1, 5, 10 |
Storage | |
Number of HDDs supported | 8 |
Maximum storage capacity | 80 TB |
HDD size | 3.5" |
RAID support | Yes |
RAID levels | 0, 1, 5, 10 |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 2 |
RAID levels | 0, 1, 5, 10 |
VGA (D-Sub) output ports | 2 |
USB 2.0 ports quantity | 2 |
Supported network protocols | TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP,RTSP, SNMP, FTP |
RS-485 ports | 1 |
RS-232 interface | Yes |
eSATA | Yes |
Line-in | Yes |
Audio RCA outputs | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
HDMI ports quantity | 2 |
Features | |
Rack mounting | Yes |
LED indicators | Power |
Certification | CE,FCC,UL |
On/off switch | Yes |
Product colour | Black |
Power | |
AC input voltage | 100 - 240 V |
Power consumption (max) | 200 W |
Operational conditions | |
Operating temperature (T-T) | -10 - 55 °C |
Operating relative humidity (H-H) | 10 - 90% |
Technical details | |
Compliance certificates | RoHS |
Weight & dimensions | |
Width | 470 mm |
Depth | 90 mm |
Height | 445 mm |
Weight | 10 kg |
Package width | 510 mm |
Package depth | 110 mm |
Package height | 450 mm |
Package weight | 12 kg |
Package type | Box |
Packaging content | |
CD manual | Yes |
Cables included | AC |
Logistics data | |
Master (outer) case width | 520 mm |
Master (outer) case length | 180 mm |
Master (outer) case height | 510 mm |
Master (outer) case gross weight | 12.7 kg |
Products per master (outer) case | 1 pc(s) |
Save £963.60
Features | |
---|---|
Housing material | Aluminium |
Brand compatibility | LevelOne |
Type | Mount |
Placement supported | Universal |
Product colour | White |
Technical details | |
Type | Mount |
Placement supported | Universal |
Weight & dimensions | |
Width | 160 mm |
Weight | 1.06 kg |
Height | 207 mm |
Depth | 140 mm |
Colour | |
Product colour | White |
Features | |
---|---|
Housing material | Aluminium |
Brand compatibility | LevelOne |
Type | Mount |
Placement supported | Universal |
Product colour | White |
Technical details | |
Type | Mount |
Placement supported | Universal |
Weight & dimensions | |
Width | 160 mm |
Weight | 1.06 kg |
Height | 207 mm |
Depth | 140 mm |
Colour | |
Product colour | White |
Save £82.61
Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
Placement supported | Indoor & outdoor |
Day/night mode | Yes |
Certification | CE, FCC |
Design | |
Weatherproof | Yes |
Country of origin | China |
IK code | IK10 |
Form factor | Dome |
Product colour | White |
Mounting type | Ceiling/wall |
Protection features | Dust resistant, Heat resistant, Rain proof, Snow resistant, Vandal proof |
LED indicators | Power |
International Protection (IP) code | IP67 |
Camera | |
Minimum illumination | 0 lx |
Field of view (FOV) angle | 86° |
Camera shutter speed | 1/3 - 1/100000 s |
Lens viewing angle, vertical | 46° |
Lens viewing angle, diagonal | 102° |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system | |
Number of lenses | 1 |
Zoom capability | Yes |
Digital zoom | 8x |
Focus adjustment | 2.0 |
Fixed focal length | 4 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 30 m |
LED type | IR |
Infra-red wavelength | 850 nm |
Video | |
Noise reduction | Yes |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Privacy masking | Yes |
Region of Interest (ROI) encoding | Yes |
Back Light Compensation (BLC) | Yes |
Noise reduction technology | 3D noise reduction |
Maximum resolution | 1920 x 1080 pixels |
Video formats supported | H.264, H.265, M-JPEG |
Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
Frame rate | 30 fps |
Total megapixels | 2 MP |
Network | |
Bluetooth | No |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
Number of users | 32 user(s) |
Ethernet LAN | Yes |
Wi-Fi | No |
Supported network protocols | TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP,SMTP,FTP,SAMBA UPnP, SNMP, Bonjour |
Storage | |
Card reader integrated | Yes |
Built-in HDD | No |
Compatible memory cards | MicroSDHC, MicroSDXC |
Ports & interfaces | |
Terminal block port | Yes |
Microphone in | Yes |
Headphone outputs | 1 |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Connectivity technology | Wired |
Security | |
Video motion detection | Yes |
Active tampering alarm | Yes |
Password protection | Yes |
Mirror | Yes |
Heartbeat | Yes |
Digital watermark | Yes |
Anti-flicker | Yes |
Management features | |
Reset button | Yes |
Power | |
Power source type | DC, PoE |
Power consumption (max) | 5 W |
Power consumption (Power over Ethernet (PoE)) | 7 W |
Power consumption | 400 mA |
DC-in jack | Yes |
Certificates | |
Certification | CE, FCC |
Operational conditions | |
Operating temperature (T-T) | -30 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
System requirements | |
Mobile operating systems supported | Android, iOS |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
Weight & dimensions | |
Package type | Box |
Depth | 82 mm |
Diameter | 11.1 cm |
Weight | 500 g |
Package width | 134 mm |
Package height | 108 mm |
Package depth | 111 mm |
Package weight | 502 g |
Packaging data | |
Package type | Box |
Package width | 134 mm |
Package height | 108 mm |
Package depth | 111 mm |
Package weight | 502 g |
Sustainability | |
Compliance certificates | RoHS |
Packaging content | |
Number of cameras | 1 |
Screws included | Yes |
Package type | Box |
Resource CD | Yes |
Technical details | |
Compliance certificates | RoHS |
Other features | |
Browser supported | IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+ |
Logistics data | |
Master (outer) case width | 111 mm |
Master (outer) case length | 111 mm |
Master (outer) case height | 111 mm |
Master (outer) case gross weight | 608 g |
Products per master (outer) case | 24 pc(s) |
Harmonized System (HS) code | 85258900 |
Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
Placement supported | Indoor & outdoor |
Day/night mode | Yes |
Certification | CE, FCC |
Design | |
Weatherproof | Yes |
Country of origin | China |
IK code | IK10 |
Form factor | Dome |
Product colour | White |
Mounting type | Ceiling/wall |
Protection features | Dust resistant, Heat resistant, Rain proof, Snow resistant, Vandal proof |
LED indicators | Power |
International Protection (IP) code | IP67 |
Camera | |
Minimum illumination | 0 lx |
Field of view (FOV) angle | 86° |
Camera shutter speed | 1/3 - 1/100000 s |
Lens viewing angle, vertical | 46° |
Lens viewing angle, diagonal | 102° |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system | |
Number of lenses | 1 |
Zoom capability | Yes |
Digital zoom | 8x |
Focus adjustment | 2.0 |
Fixed focal length | 4 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 30 m |
LED type | IR |
Infra-red wavelength | 850 nm |
Video | |
Noise reduction | Yes |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Privacy masking | Yes |
Region of Interest (ROI) encoding | Yes |
Back Light Compensation (BLC) | Yes |
Noise reduction technology | 3D noise reduction |
Maximum resolution | 1920 x 1080 pixels |
Video formats supported | H.264, H.265, M-JPEG |
Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
Frame rate | 30 fps |
Total megapixels | 2 MP |
Network | |
Bluetooth | No |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
Number of users | 32 user(s) |
Ethernet LAN | Yes |
Wi-Fi | No |
Supported network protocols | TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP,SMTP,FTP,SAMBA UPnP, SNMP, Bonjour |
Storage | |
Card reader integrated | Yes |
Built-in HDD | No |
Compatible memory cards | MicroSDHC, MicroSDXC |
Ports & interfaces | |
Terminal block port | Yes |
Microphone in | Yes |
Headphone outputs | 1 |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Connectivity technology | Wired |
Security | |
Video motion detection | Yes |
Active tampering alarm | Yes |
Password protection | Yes |
Mirror | Yes |
Heartbeat | Yes |
Digital watermark | Yes |
Anti-flicker | Yes |
Management features | |
Reset button | Yes |
Power | |
Power source type | DC, PoE |
Power consumption (max) | 5 W |
Power consumption (Power over Ethernet (PoE)) | 7 W |
Power consumption | 400 mA |
DC-in jack | Yes |
Certificates | |
Certification | CE, FCC |
Operational conditions | |
Operating temperature (T-T) | -30 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
System requirements | |
Mobile operating systems supported | Android, iOS |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
Weight & dimensions | |
Package type | Box |
Depth | 82 mm |
Diameter | 11.1 cm |
Weight | 500 g |
Package width | 134 mm |
Package height | 108 mm |
Package depth | 111 mm |
Package weight | 502 g |
Packaging data | |
Package type | Box |
Package width | 134 mm |
Package height | 108 mm |
Package depth | 111 mm |
Package weight | 502 g |
Sustainability | |
Compliance certificates | RoHS |
Packaging content | |
Number of cameras | 1 |
Screws included | Yes |
Package type | Box |
Resource CD | Yes |
Technical details | |
Compliance certificates | RoHS |
Other features | |
Browser supported | IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+ |
Logistics data | |
Master (outer) case width | 111 mm |
Master (outer) case length | 111 mm |
Master (outer) case height | 111 mm |
Master (outer) case gross weight | 608 g |
Products per master (outer) case | 24 pc(s) |
Harmonized System (HS) code | 85258900 |
Save £69.81
Save £6.18
