| Performance |
|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 33 |
| Languages support | Multi |
| Fog proof | Yes |
| Built-in heater | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Cable length | 1.1 m |
| Dynamic range | 120 dB |
| Picture overlay | 128 x 128 pixels |
| Picture overlay | 24 bit |
| Design |
|---|
| Fog proof | Yes |
| Form factor | Bullet |
| Product colour | Stainless steel |
| Protection features | Corrosion resistant, Dust resistant, Explosion proof, Water resistant |
| International Protection (IP) code | IP68 |
| Housing material | Stainless steel |
| Camera |
|---|
| Minimum illumination | 0 lx |
| Camera shutter speed | 1/3 - 1/100000 s |
| Lens viewing angle, horizontal | 94.8 - 38.2° |
| Lens viewing angle, vertical | 50 - 21.4° |
| Lens viewing angle, diagonal | 113 - 43.9° |
| Number of Privacy masking areas | 8 |
| Progressive scan | Yes |
| Image sensor |
|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2 mm (1 / 2") |
| Number of sensors | 1 |
| Lens system |
|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.4 |
| Auto focus | Yes |
| Recognize distance (wide) | 12.8 m |
| Recognize distance (tele) | 44 m |
| Observe distance (wide) | 25.4 m |
| Observe distance (tele) | 87.3 m |
| Identify distance (wide) | 6.4 m |
| Identify distance (tele) | 22 m |
| Detect distance (wide) | 6.4 m |
| Detect distance (tele) | 220 m |
| Focus | Motorized/Manual |
| Focal length range | 2.8 - 12 mm |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 80 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video |
|---|
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Smart IR | Yes |
| Region of Interest (ROI) encoding | Yes |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 32 Kbps - 8 Mbps |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3072 x 1728, 3840 x 2160 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 8 MP |
| Video recording | Yes |
| Audio |
|---|
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Audio formats supported | AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Sample rates | 8 - 48 kHz |
| Bit rate range | 8 - 320 Kbit/s |
| Network |
|---|
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Number of users | 32 user(s) |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS |
| Client interoperability | iVMS-4200, Hik-Connect, Hik-Central |
| User access level | Administrator, Operator, User |
| Number of simultaneous live view channels | 6 channels |
| Live view | Yes |
| Storage |
|---|
| Maximum memory card size | 256 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces |
|---|
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Composite video out | 1 |
| Connectivity technology | Wired |
| Security |
|---|
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Scene change |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Heartbeat | Yes |
| Pixel counter | Yes |
| Password reset via email | Yes |
| Human and vehicle targets classification | Yes |
| Flash log | Yes |
| Automatic Network Replenishment (ANR) | Yes |
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| Network access storage (NAS) | Yes |
| Management features |
|---|
| Web-based management | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection |
| Power |
|---|
| Power source type | AC, PoE |
| Power consumption (max) | 22.6 W |
| Power consumption (Power over Ethernet (PoE)) | 23.6 W |
| AC input voltage | 100-240 V |
| Operational conditions |
|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions |
|---|
| Length | 513.2 mm |
| Width | 169 mm |
| Height | 308 mm |
| Weight | 17.4 kg |
| Package width | 753 mm |
| Package height | 424 mm |
| Package depth | 313 mm |
| Package weight | 19.8 kg |
| Cable length | 1.1 m |
| Packaging data |
|---|
| Package width | 753 mm |
| Package height | 424 mm |
| Package depth | 313 mm |
| Package weight | 19.8 kg |
| Sustainability |
|---|
| Compliance certificates | CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Industry Canada (IC), KC |
| Packaging content |
|---|
| Number of cameras | 1 |
| Wiper included | Yes |
| Technical details |
|---|
| Audio input | 1 |
| Compliance certificates | CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Industry Canada (IC), KC |
| Other features |
|---|
| Focus | Motorized/Manual |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Audio output | 1 |

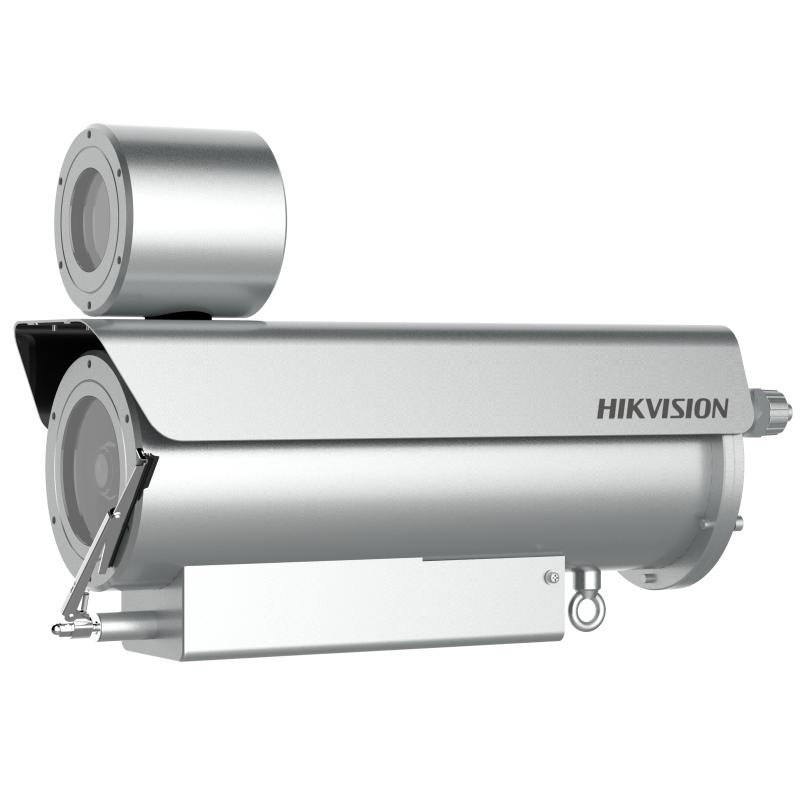

Hikvision DS-2XE6482F-IZHRS(2.8-12MM)(D) security camera Bullet IP security camera Outdoor 3840 x 2160 pixels£3,059.40RRP £4,181.18
