| Performance |
|---|
| Remote viewing | Yes |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Design |
|---|
| IK code | IK10+ |
| Fog proof | Yes |
| Form factor | Dome |
| Product colour | Silver |
| Mounting type | Ceiling |
| International Protection (IP) code | IP66, IP69K |
| Housing material | Stainless steel |
| Camera |
|---|
| Minimum illumination | 0.07 lx |
| Tilt angle range | 0 - 67° |
| Pan range | 0 - 354° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Angle of rotation | 355° |
| Camera shutter type | Electronic |
| Camera shutter speed | 2 - 1/12000 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 92.1° |
| Lens viewing angle, vertical | 67.2° |
| Lens viewing angle, diagonal | 119.9° |
| Progressive scan | Yes |
| Image sensor |
|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors | 1 |
| Lens system |
|---|
| Number of lenses | 1 |
| Maximum aperture number | 2.4 |
| Closest focusing distance | 0.5 m |
| Minimum aperture number | 1.3 |
| Focus | Motorized |
| Zoom capability | Yes |
| Optical zoom | 2.4x |
| Focal length range | 3.9 - 9.4 mm |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Video |
|---|
| Noise reduction | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Image stabilizer | Yes |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 2560 x 1920 pixels |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440, 2560 x 1920 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 5 MP |
| Audio |
|---|
| Sample rate | 16 kHz |
| Audio formats supported | AAC-LC, ADPCM, G.711 μ-law, G.726 |
| Audio detection | Yes |
| Network |
|---|
| Networking standards | IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Number of users | 20 user(s) |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Storage |
|---|
| Maximum memory card size | 512 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Ports & interfaces |
|---|
| USB port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Composite video out | 1 |
| Connectivity technology | Wired |
| Security |
|---|
| Alert notification type | E-mail |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Defocus, Face detection, Missing object |
| Video motion detection | Yes |
| Security algorithms | 802.1x RADIUS, EAP-TLS, HTTPS, SSL/TLS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Anti-flicker | Yes |
| Management features |
|---|
| Web browser | Yes |
| Web-based management | Yes |
| Power |
|---|
| Power source type | AC, DC, PoE |
| Power consumption (max) | 14 W |
| Power consumption (Power over Ethernet (PoE)) | 12.95 W |
| AC input voltage | 24 V |
| Power consumption (typical) | 11.5 W |
| DC output voltage | 12 |
| Operational conditions |
|---|
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| System requirements |
|---|
| Windows operating systems supported | Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.13 High Sierra |
| Weight & dimensions |
|---|
| Height | 120.5 mm |
| Diameter | 16.2 cm |
| Weight | 2.8 kg |
| Packaging content |
|---|
| Number of cameras | 1 |
| Other features |
|---|
| Focus | Motorized |
| Video compression formats | H.264, H.265, M-JPEG |
Axis 02463-001 security camera Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall£2,254.10RRP £3,043.05

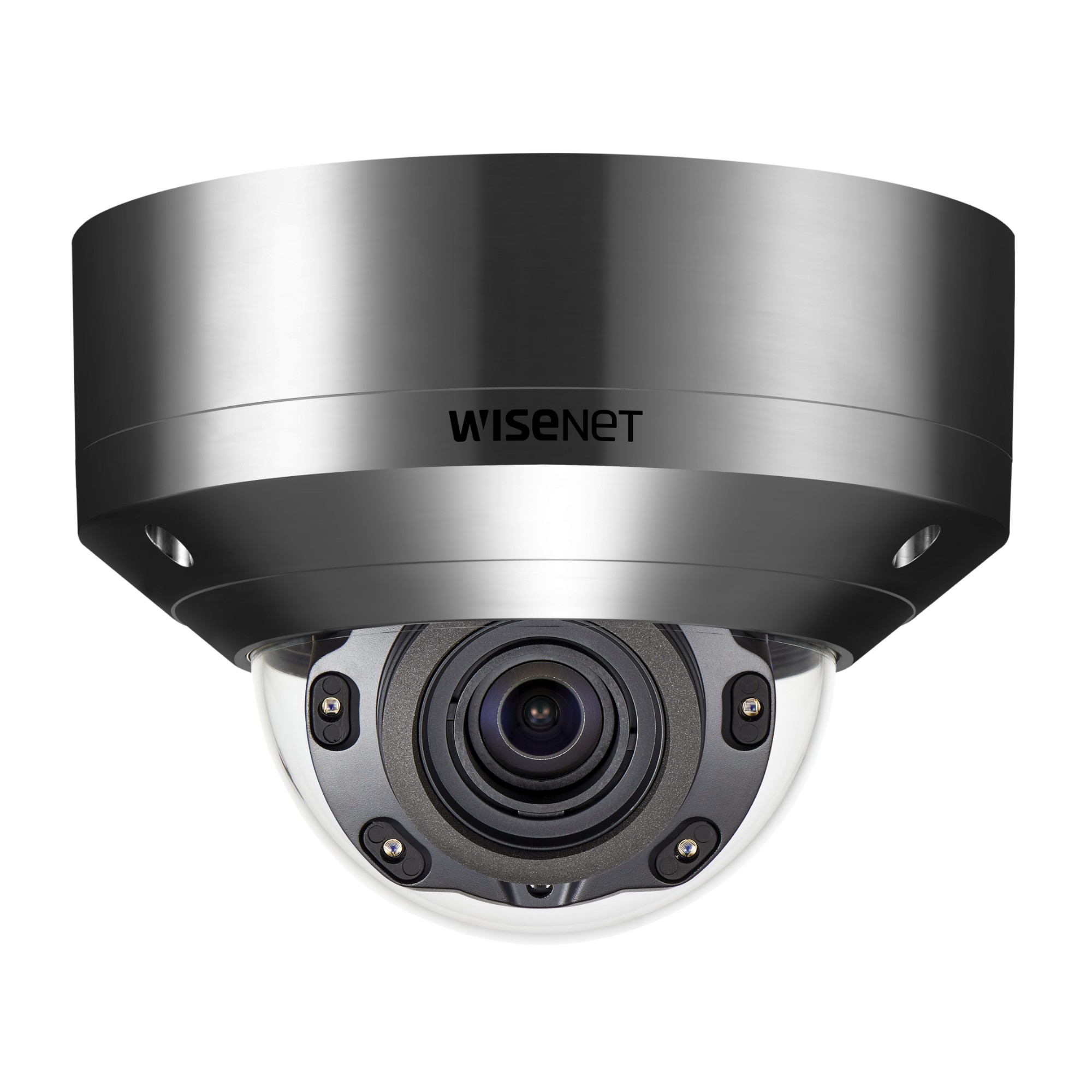

Hanwha XNV-8080RSA security camera Dome IP security camera Indoor & outdoor 2560 x 1920 pixels Ceiling£1,260.19RRP £1,554.24
