| Performance |
|---|
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| PTZ modes | Digital PTZ |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Plug and Play | Yes |
| Certification | 55032 Class A, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, EN 62479, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC/EN 60529 IP68, DIN EN/IEC 60079-0, DIN EN/IEC 60079-1, DIN EN/IEC 60079-7, DIN EN/IEC 60079-31, TR CU 012/2011, GOST R IEC 60079-0, GOST IEC 60079-1, GOST R IEC 60079-7, GOST R IEC 60079-31, NIST SP500–267 |
| Design |
|---|
| Fog proof | Yes |
| Form factor | Box |
| Product colour | Stainless steel |
| Mounting type | Pole clamp |
| Protection features | Corrosion resistant, Explosion proof |
| International Protection (IP) code | IP68 |
| Housing material | Stainless steel |
| Camera |
|---|
| Minimum illumination | 0.03 lx |
| Camera shutter speed | 1/66500 - 1 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Progressive scan | Yes |
| Image sensor |
|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system |
|---|
| Number of lenses | 1 |
| Maximum aperture number | 4 |
| Auto focus | Yes |
| Minimum aperture number | 1.4 |
| Zoom capability | Yes |
| Optical zoom | 32x |
| Digital zoom | 12x |
| Focal length range | 4.3 - 137 mm |
| Video |
|---|
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AVC, H.264, M-JPEG, MPEG4 |
| Supported graphics resolutions | 160 x 90, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Network |
|---|
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| Storage |
|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Flash memory | 512 MB |
| Ports & interfaces |
|---|
| Connectivity technology | Wired |
| Security |
|---|
| Alert notification type | E-mail |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Power |
|---|
| Power source type | DC, PoE |
| Power consumption (max) | 40 W |
| Power consumption (Power over Ethernet (PoE)) | 12.95 W |
| Power consumption (typical) | 7.7 W |
| Certificates |
|---|
| Certification | 55032 Class A, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, EN 62479, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC/EN 60529 IP68, DIN EN/IEC 60079-0, DIN EN/IEC 60079-1, DIN EN/IEC 60079-7, DIN EN/IEC 60079-31, TR CU 012/2011, GOST R IEC 60079-0, GOST IEC 60079-1, GOST R IEC 60079-7, GOST R IEC 60079-31, NIST SP500–267 |
| Operational conditions |
|---|
| Operating temperature (T-T) | -60 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Weight & dimensions |
|---|
| Width | 171 mm |
| Depth | 396 mm |
| Height | 396 mm |
| Weight | 11.1 kg |
| Packaging content |
|---|
| Number of cameras | 1 |
| Sun shield included | Yes |
| Memory card included | MicroSDXC |
| Included memory card size | 128 GB |
| Manual | Yes |
| Logistics data |
|---|
| Harmonized System (HS) code | 85258900 |
Axis Q1728 Box IP security camera Outdoor 3840 x 2160 pixels Pole clamp£1,231.01RRP £1,600.31
Axis 01572-001 security camera Box IP security camera Indoor & outdoor 1920 x 1080 pixels Pole clamp£11,050.93RRP £16,300.12

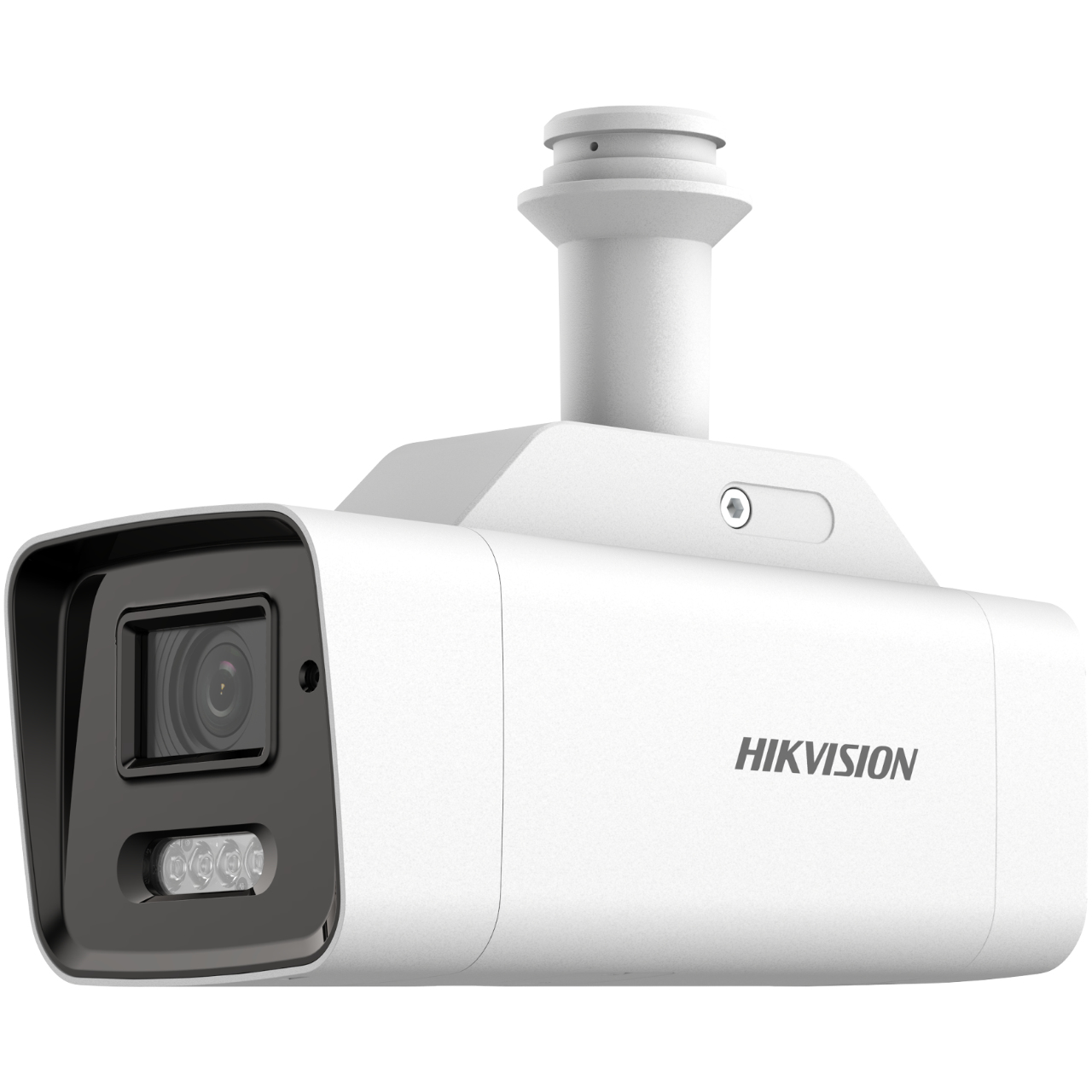

Hikvision DS-2XS6A87G1-LS/4G(2.8mm) Bullet IP security camera Outdoor 3840 x 2160 pixels Pole clamp£534.31RRP £801.47
