| Performance |
|---|
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| PTZ modes | Digital PTZ |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Certification | NEMA 4X |
| Design |
|---|
| IK code | IK10 |
| Fog proof | Yes |
| Form factor | Bullet |
| Product colour | Black |
| Mounting type | Wall |
| Protection features | Vandal proof |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium |
| Camera |
|---|
| Minimum illumination | 0.015 lx |
| White balance | ATW, AWC, Indoor, Manual, Mercury lamp, Outdoor, Sodium lamp |
| Camera shutter type | Electronic |
| Camera shutter speed | 2 - 1/12000 s |
| Lens viewing angle, horizontal | 88.6° |
| Lens viewing angle, vertical | 47.5° |
| Lens viewing angle, diagonal | 104.8° |
| Progressive scan | Yes |
| Image sensor |
|---|
| Number of effective pixels (H x V) | 1945 x 1109 pixels |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system |
|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.4 |
| Closest focusing distance | 0.4 m |
| Focus | Manual |
| Zoom capability | Yes |
| Digital zoom | 24x |
| Fixed focal length | 4 mm |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video |
|---|
| Noise reduction | Yes |
| Image quality adjustment | Contrast |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Image stabilizer | Yes |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AVC, H.264, H.265, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 2.16 MP |
| Audio |
|---|
| Sample rate | 48 kHz |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726 |
| Audio detection | Yes |
| Network |
|---|
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Number of users | 20 user(s) |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Supported network protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Storage |
|---|
| Maximum memory card size | 512 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Ports & interfaces |
|---|
| USB port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Composite video out | 1 |
| Connectivity technology | Wired |
| Security |
|---|
| Alert notification type | E-mail |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Defocus, Face detection, Missing object, People counting |
| Video motion detection | Yes |
| Security algorithms | 802.1x RADIUS, EAP-TLS |
| IP address filtering | Yes |
| Active tampering alarm | Yes |
| Anti-flicker | Yes |
| Management features |
|---|
| Web browser | Yes |
| Power |
|---|
| Power source type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 9.7 W |
| Power consumption (typical) | 8.8 W |
| Certificates |
|---|
| Certification | NEMA 4X |
| Operational conditions |
|---|
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| System requirements |
|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Weight & dimensions |
|---|
| Width | 70 mm |
| Depth | 296 mm |
| Height | 70 mm |
| Weight | 1.22 kg |
| Packaging content |
|---|
| Number of cameras | 1 |
| Other features |
|---|
| Focus | Manual |

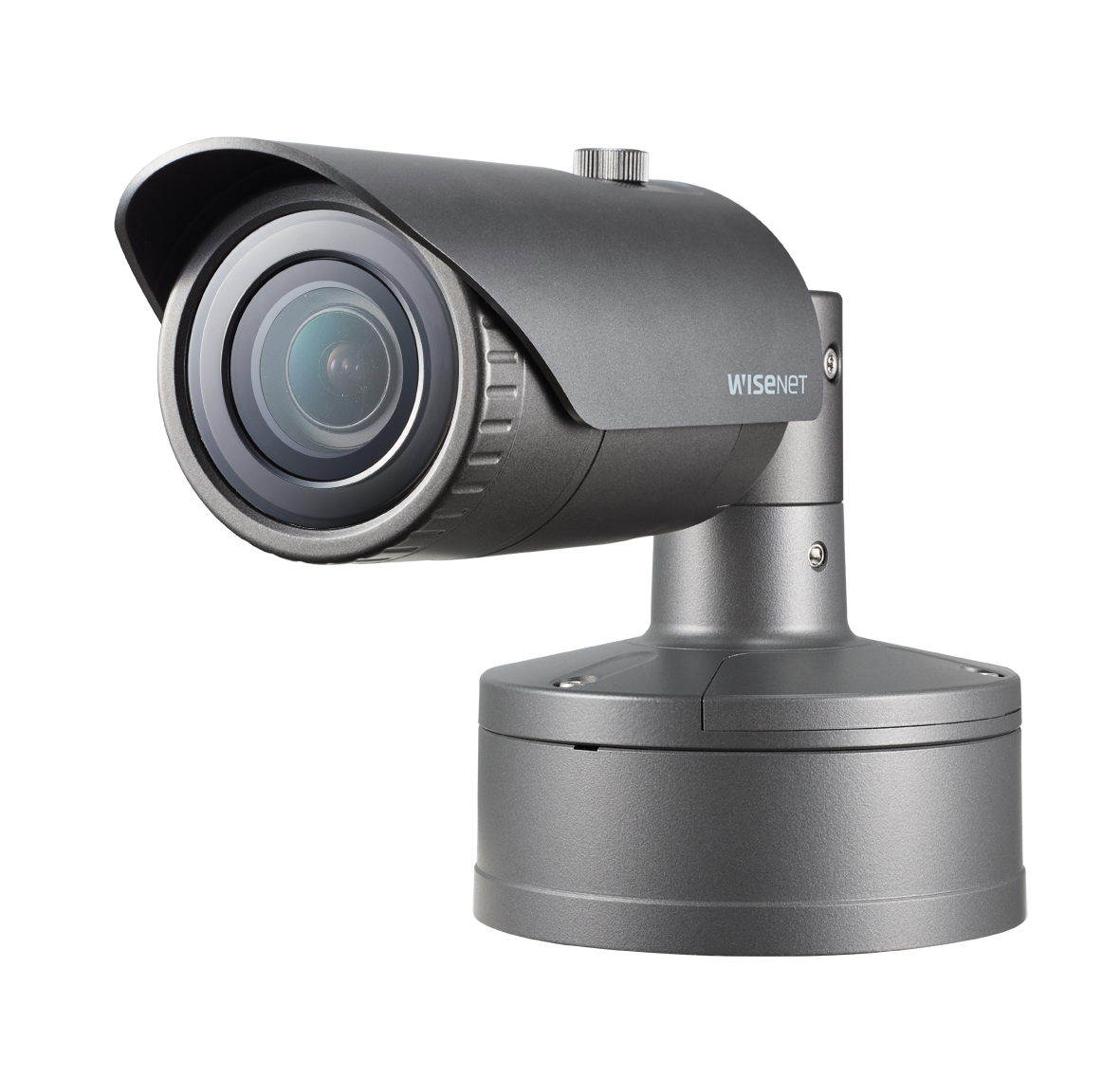

Hanwha XNO-6020R Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Wall£621.62RRP £813.29
